Observations/Finding

As requested, the site was visited by our AS Engineering and Consulting (ASEC) representative for the purpose of providing quality control inspection and testing services.  Visual observation techniques were employed to verify compliance with project drawing/specifications, applicable codes, and materials submittals. The following observations were observed on site this day.

Seven Hills: Amenities:

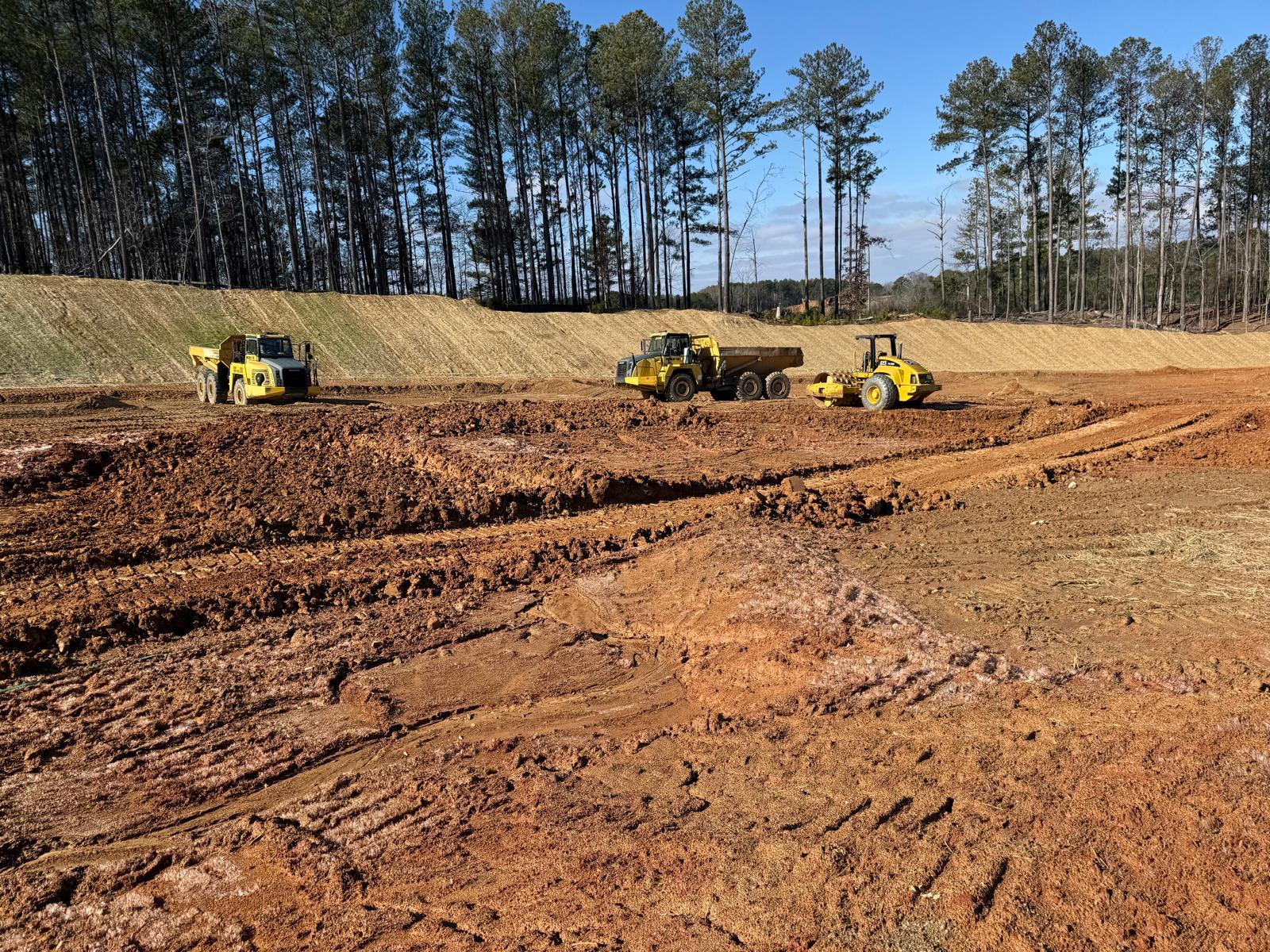

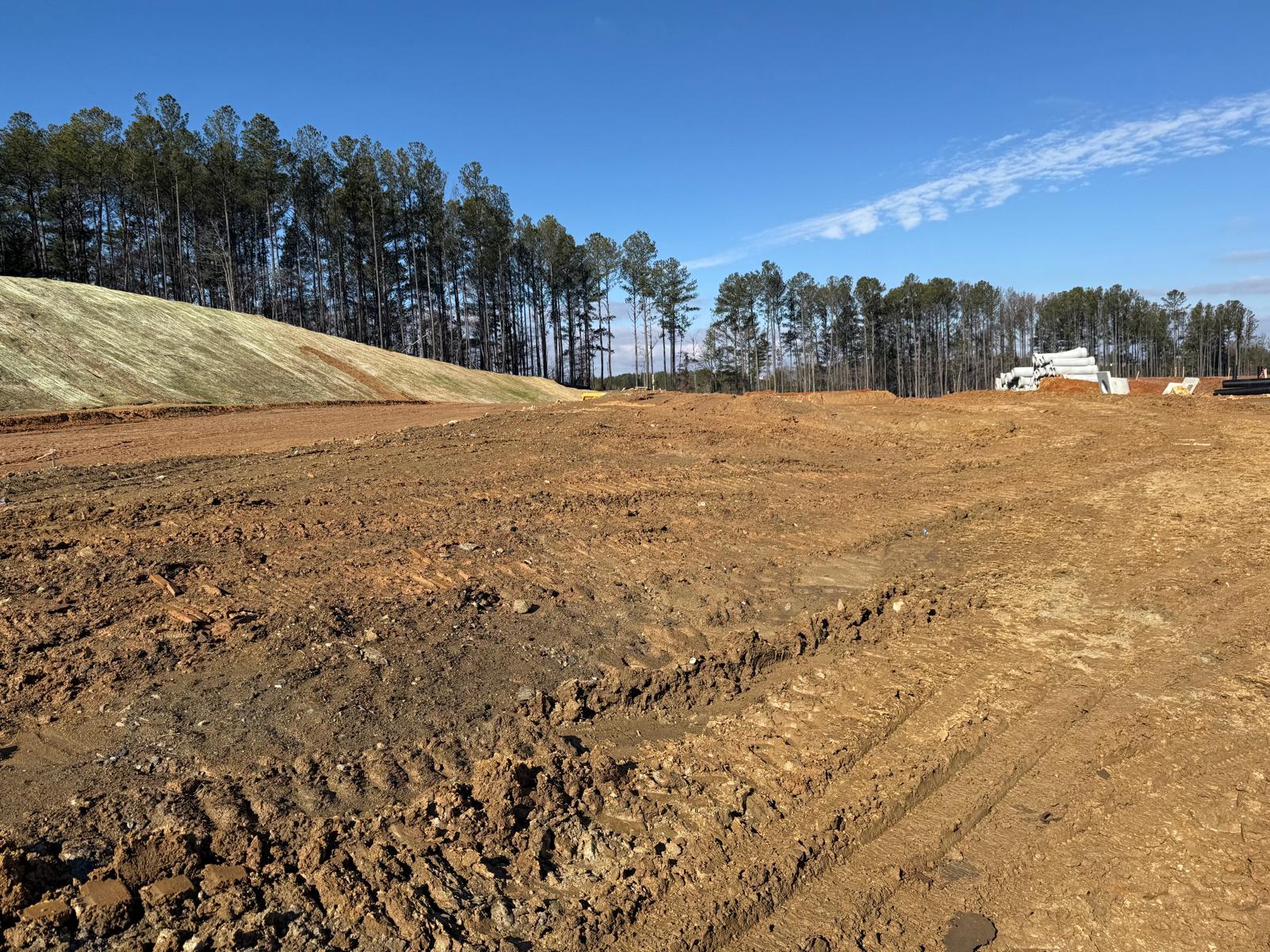

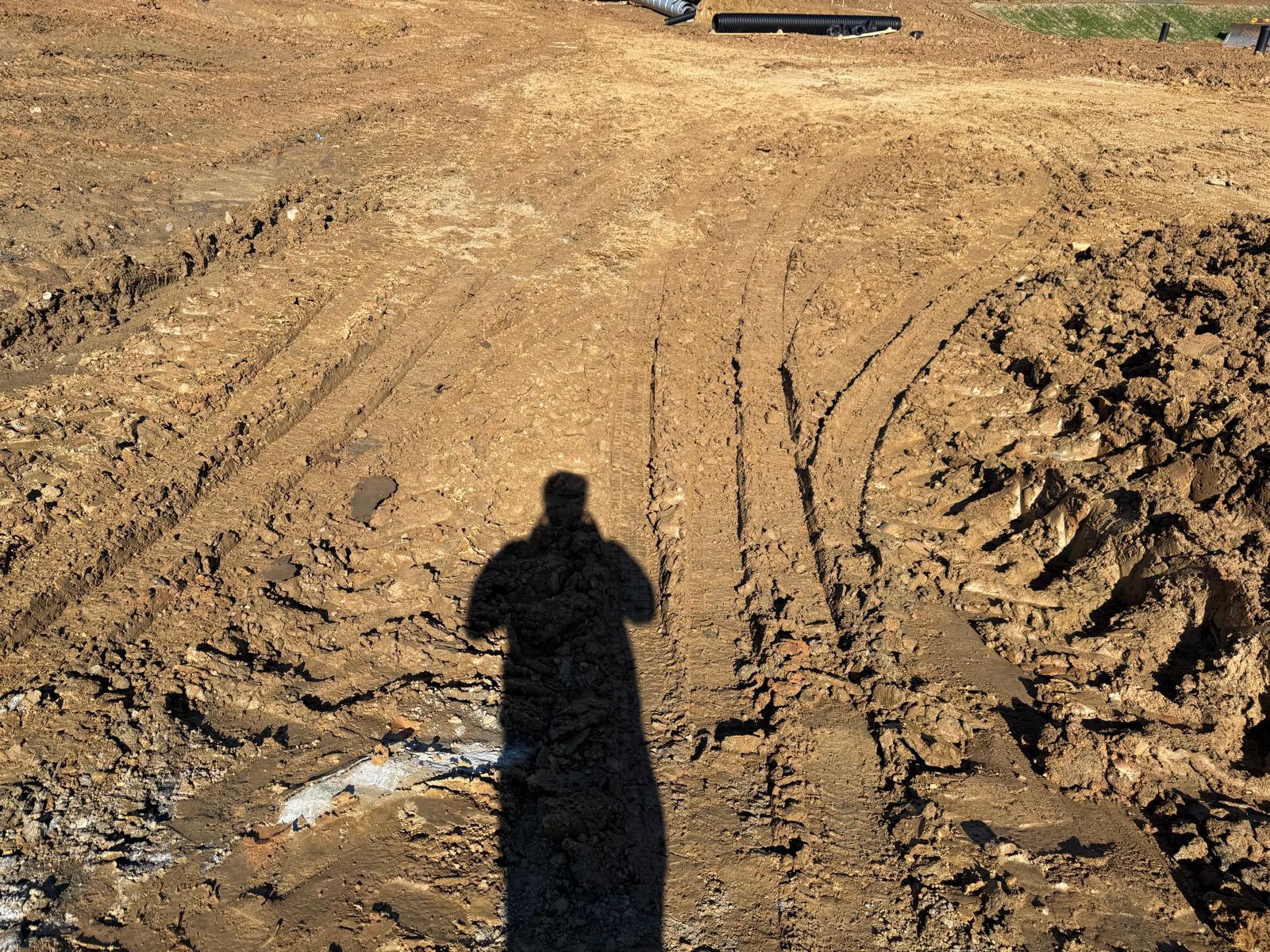

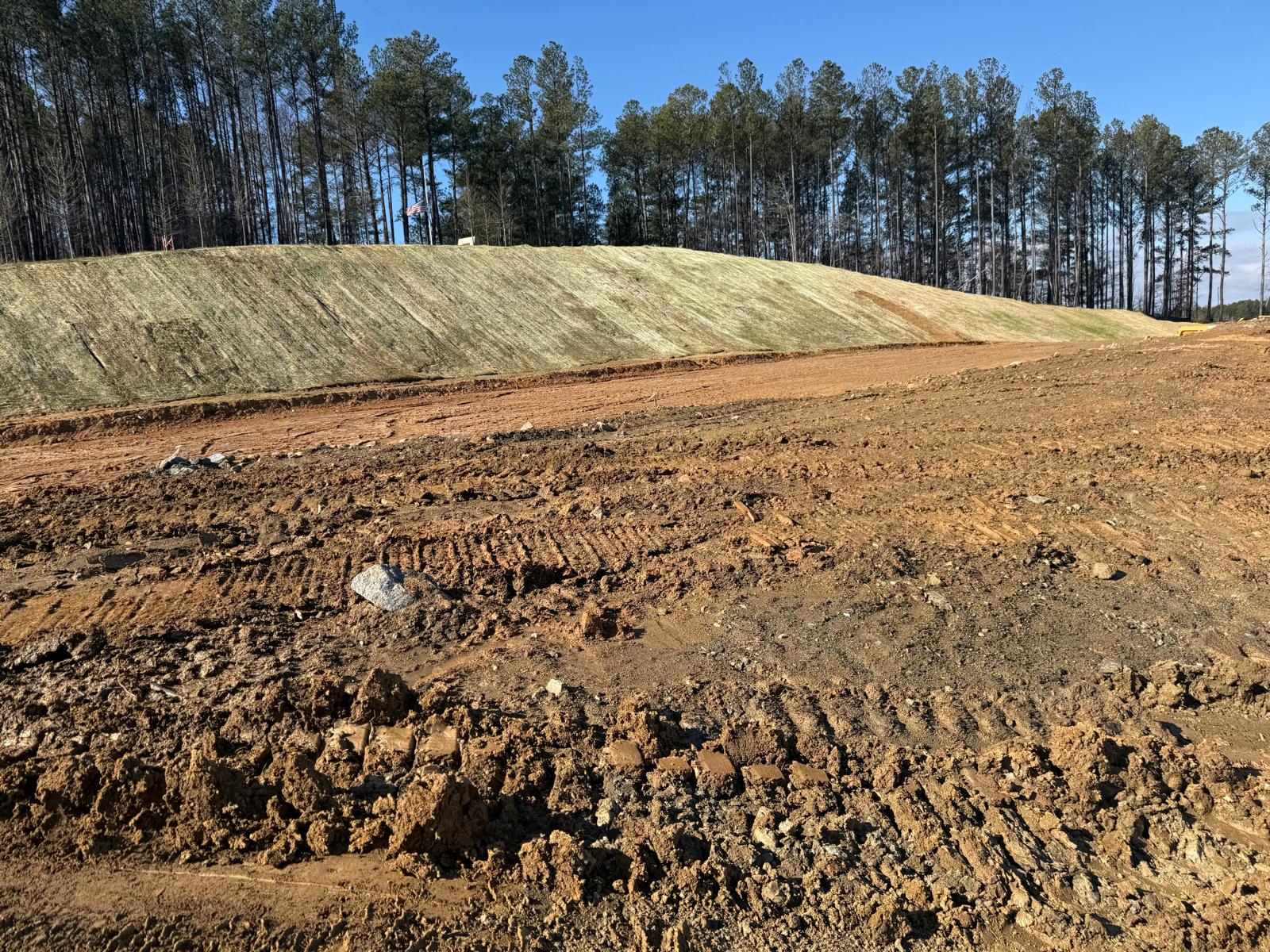

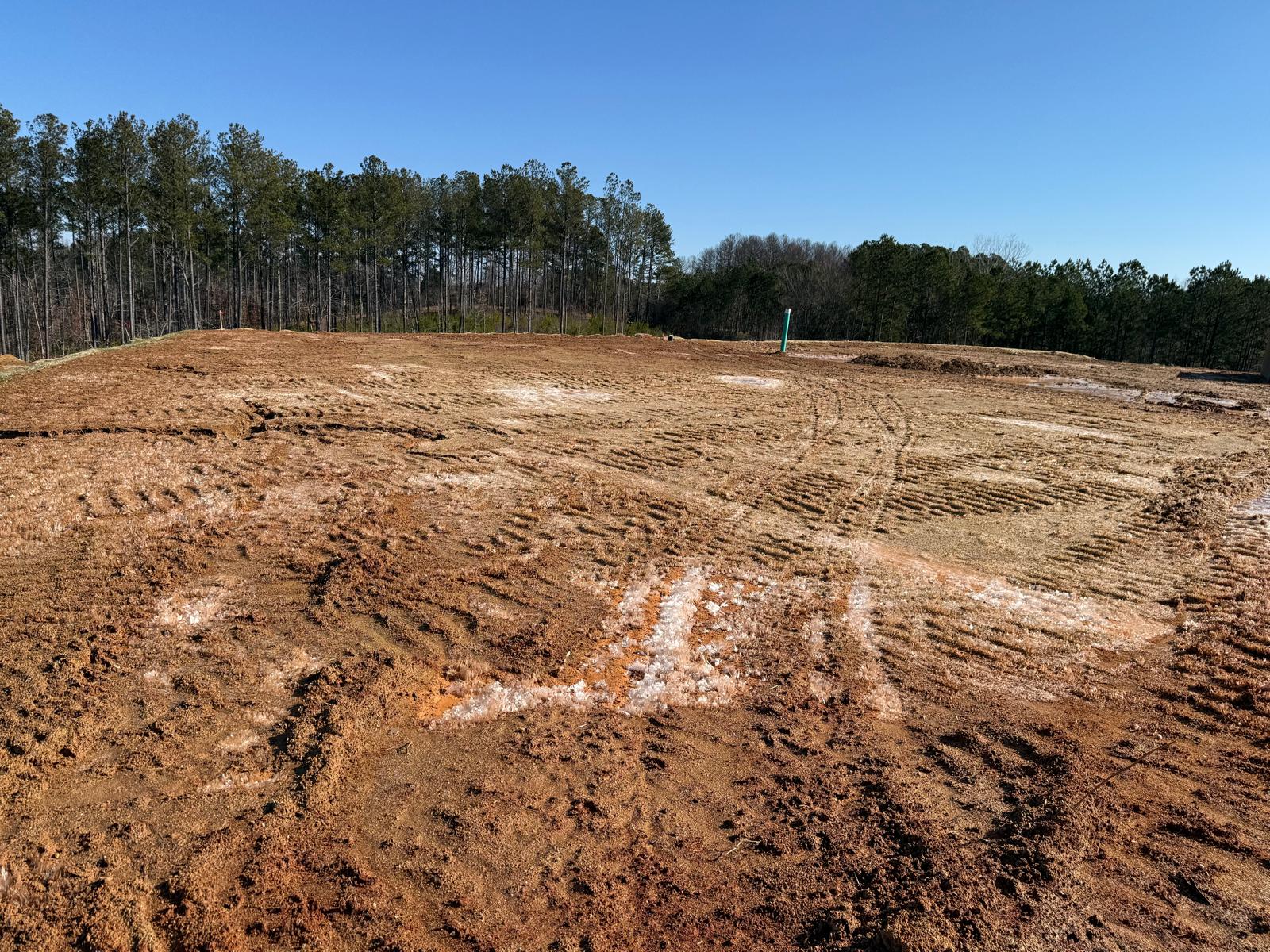

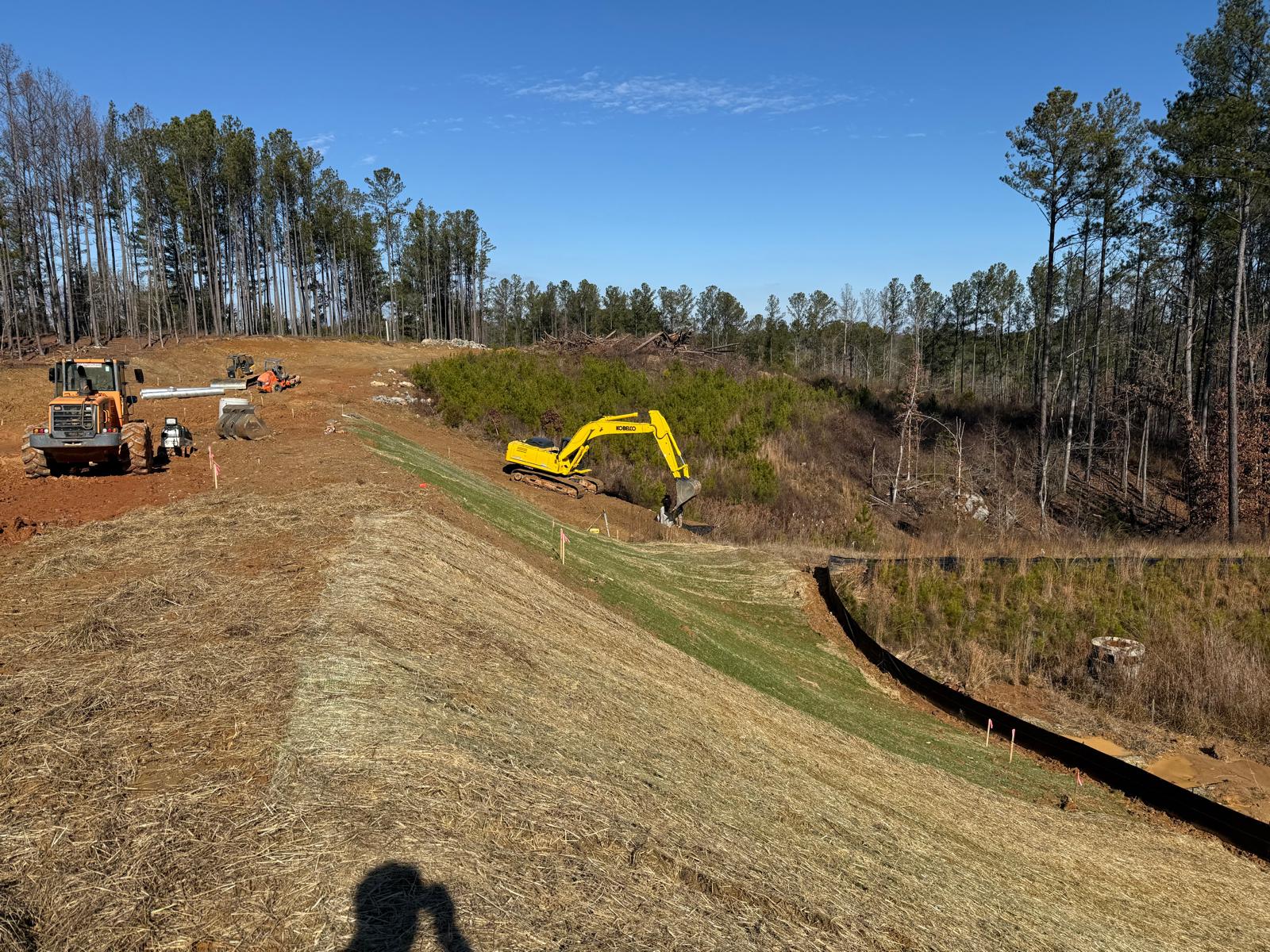

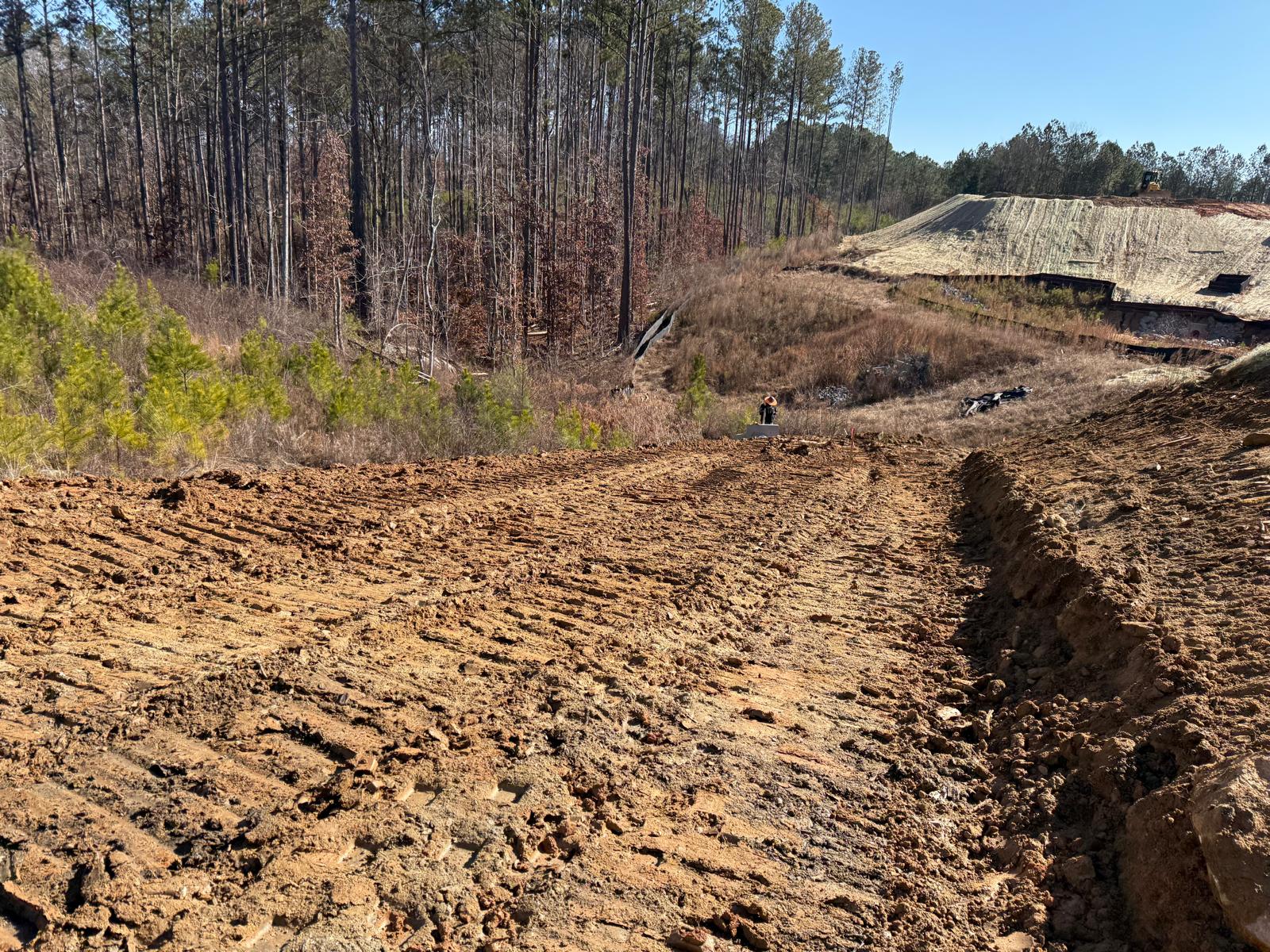

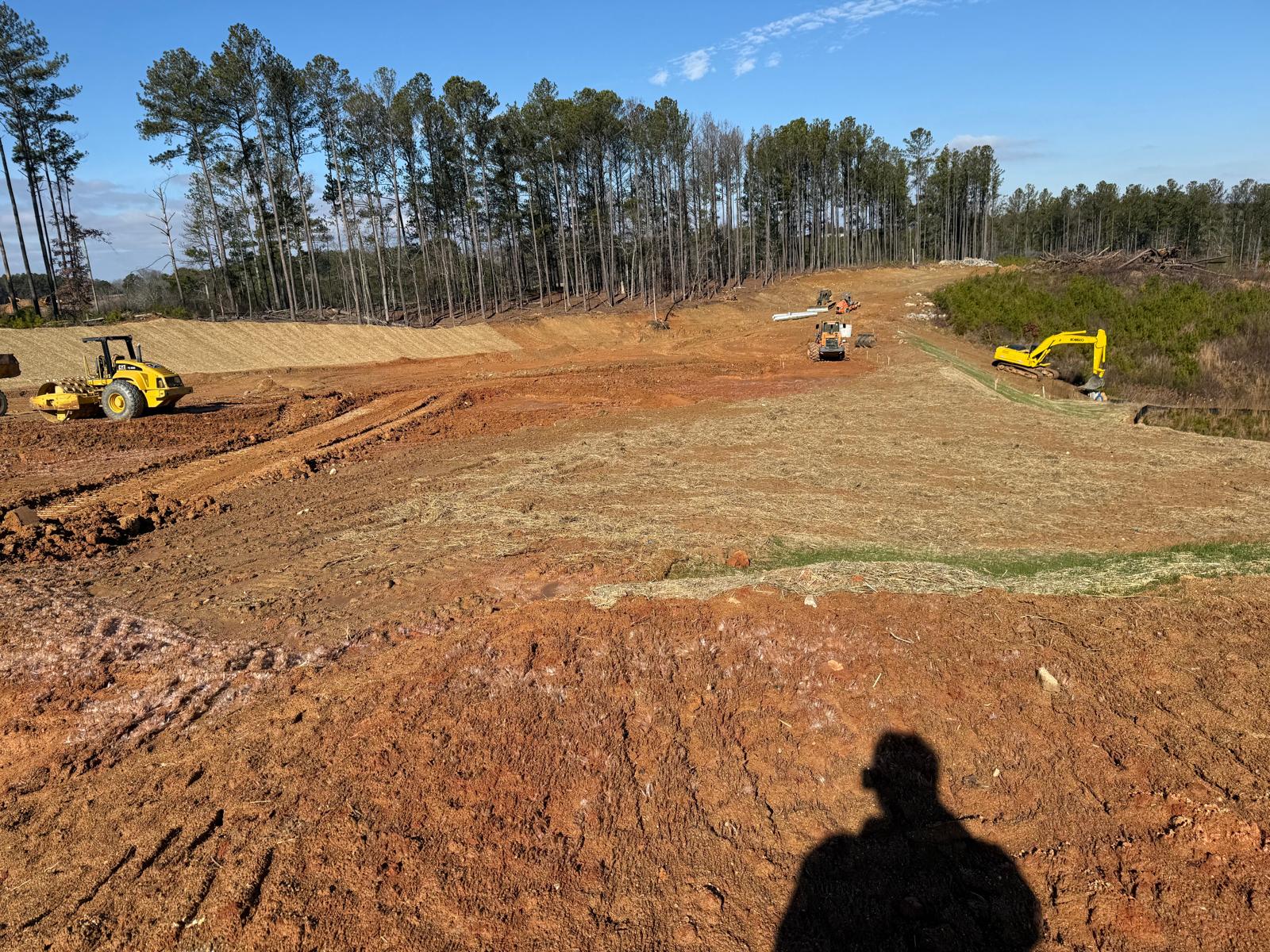

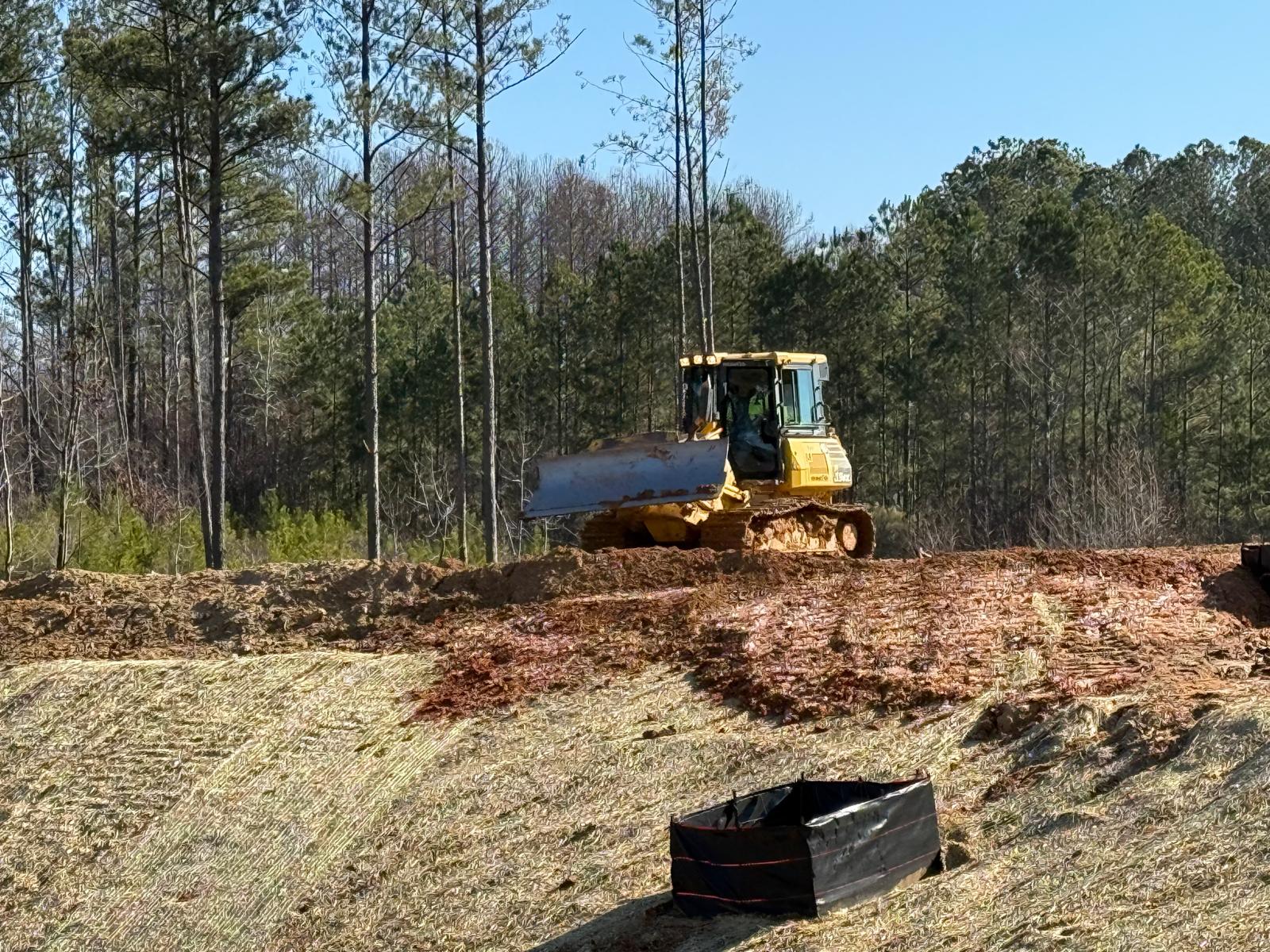

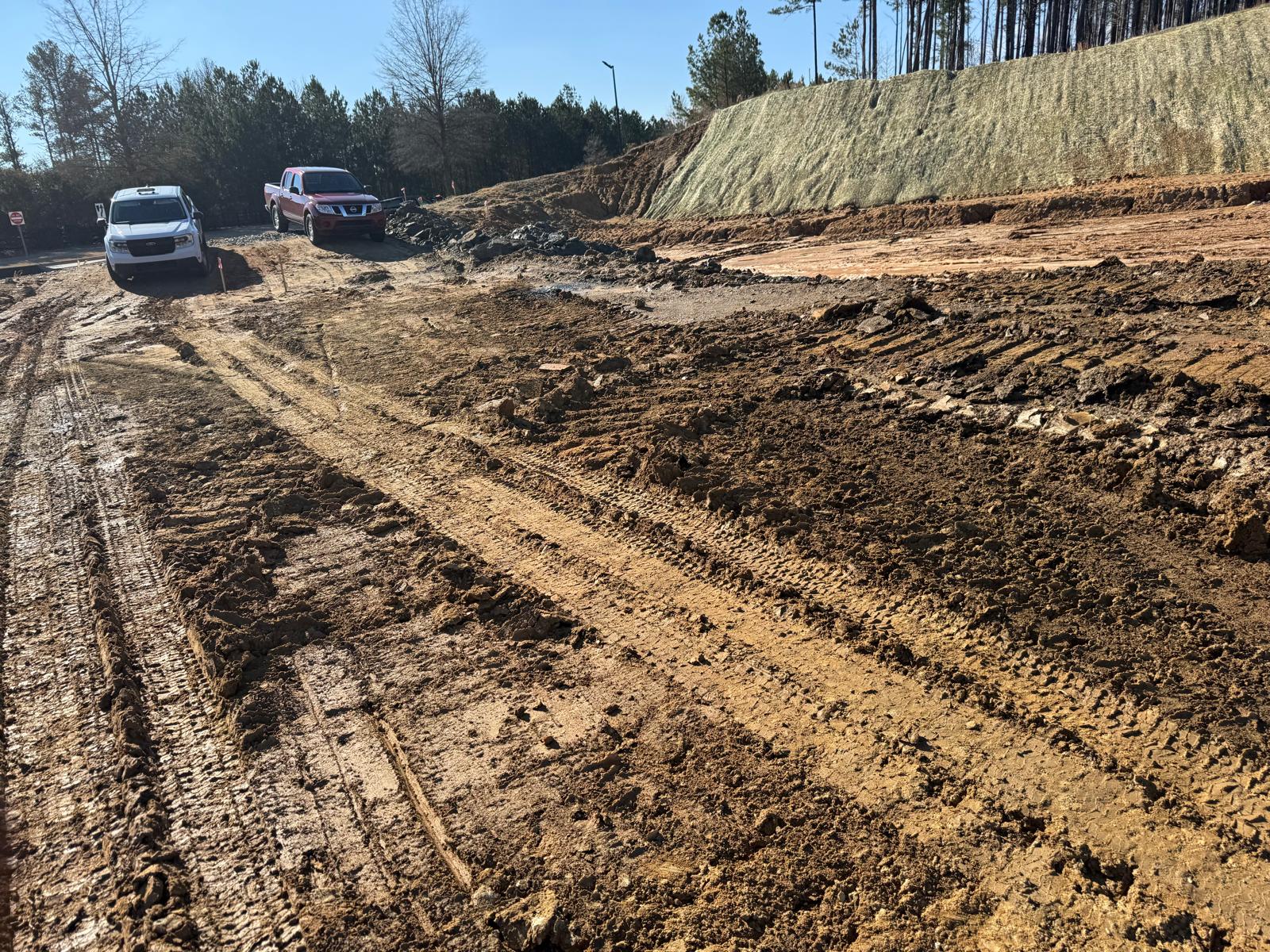

Due to the excessive rainfall in the preceding days, the jobsite remained saturated.   The contractor spent the day scarifying and aerating wet surficial soils, spreading and discing using various forms of equipment.

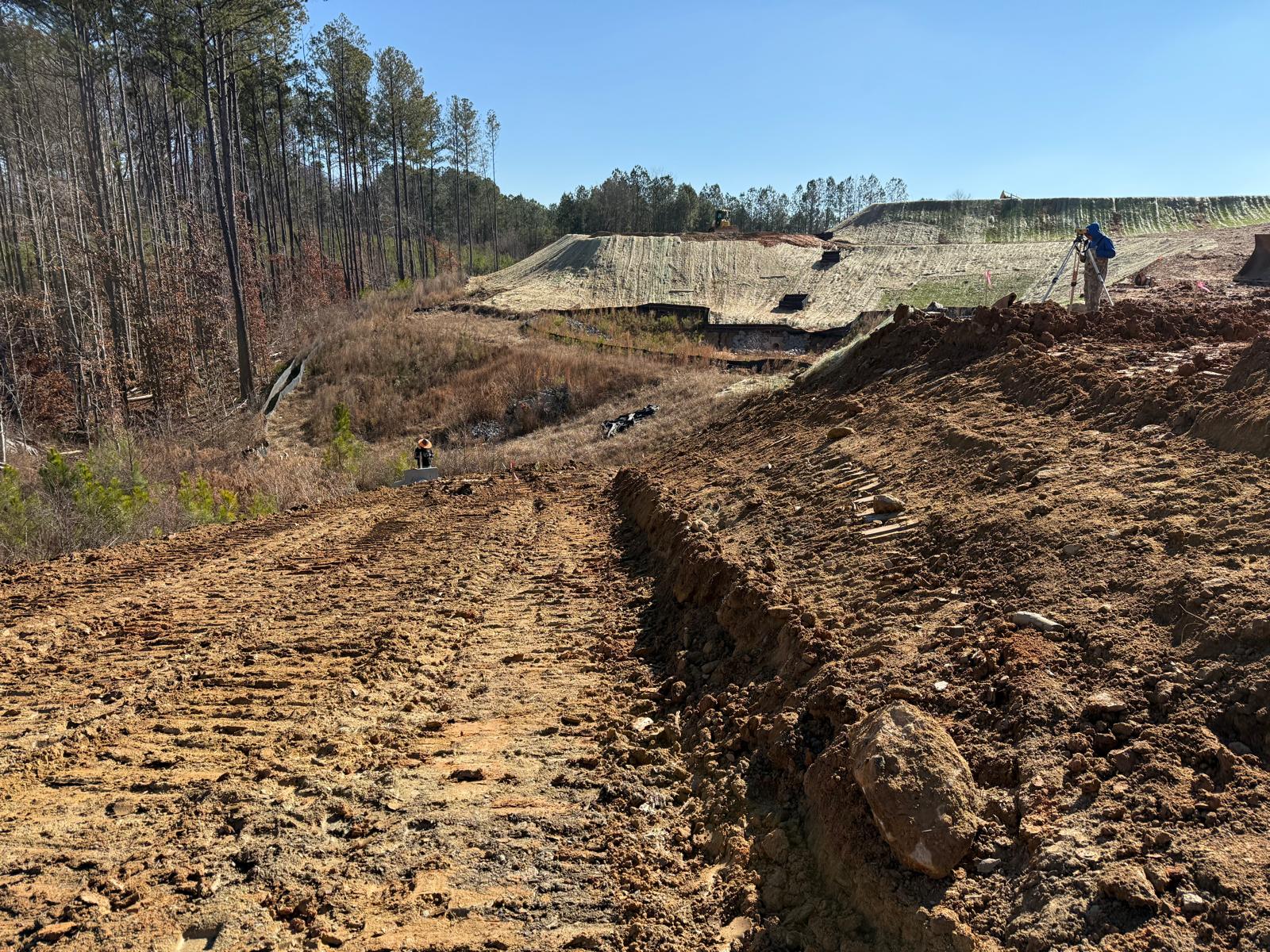

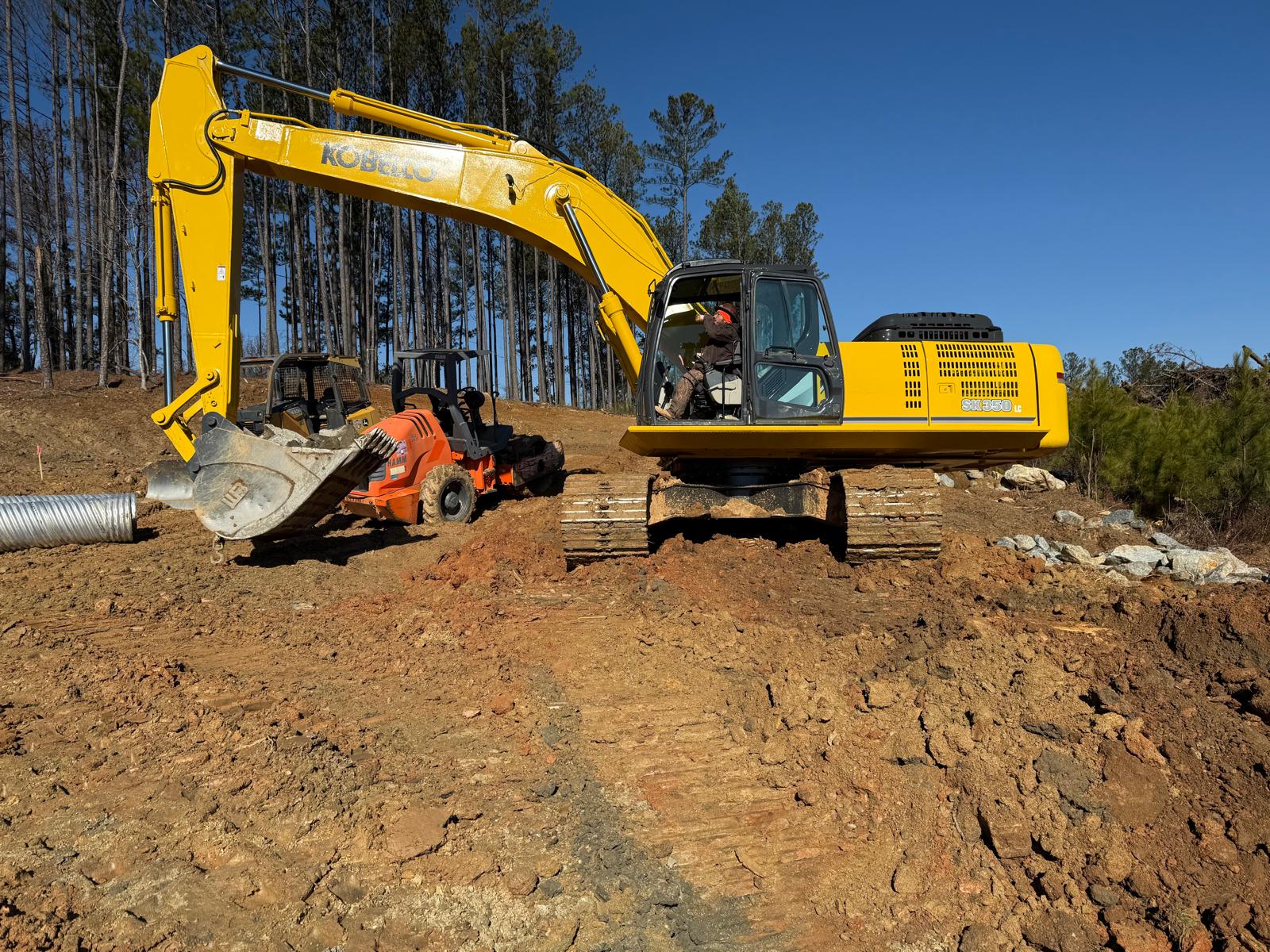

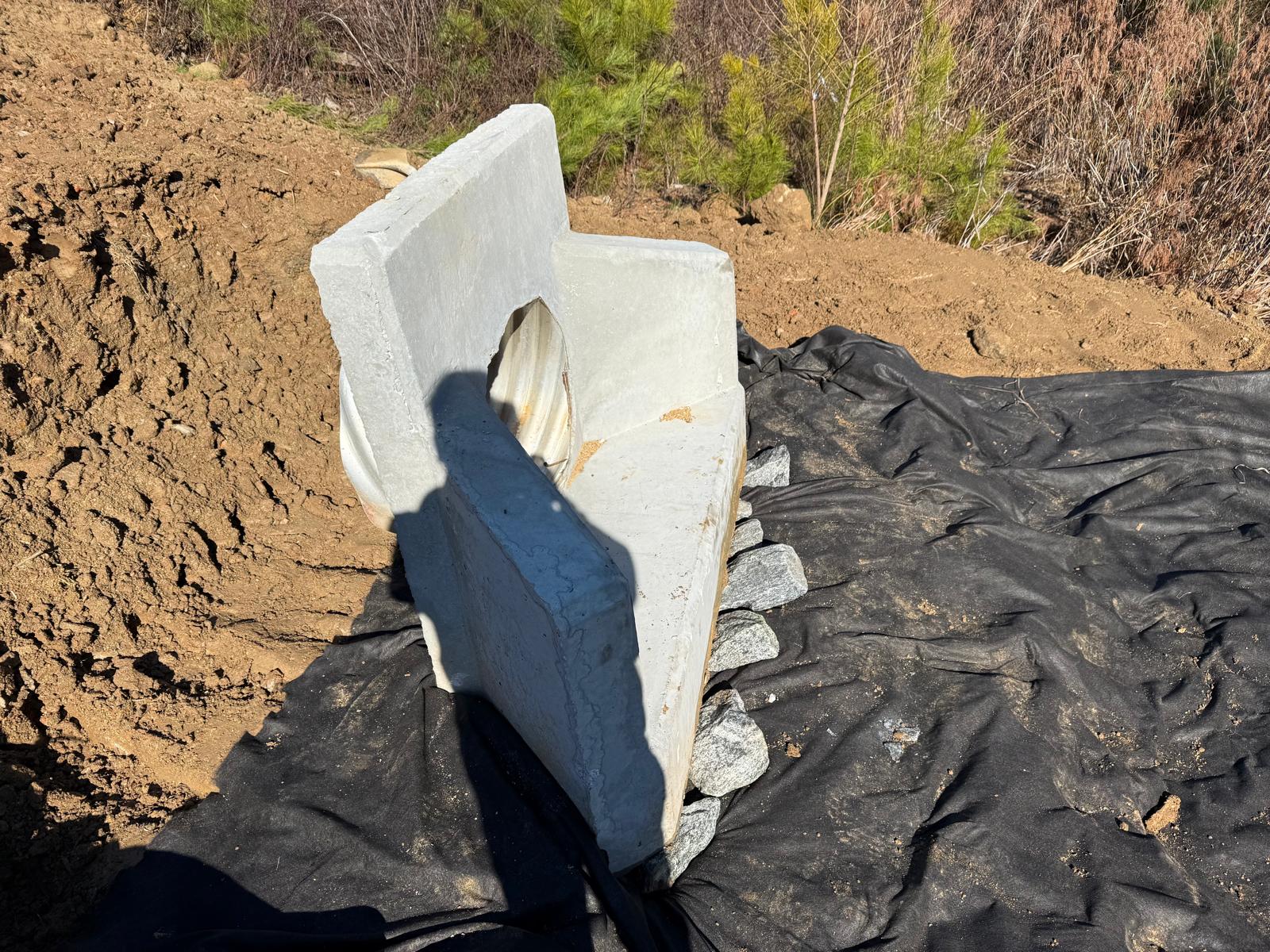

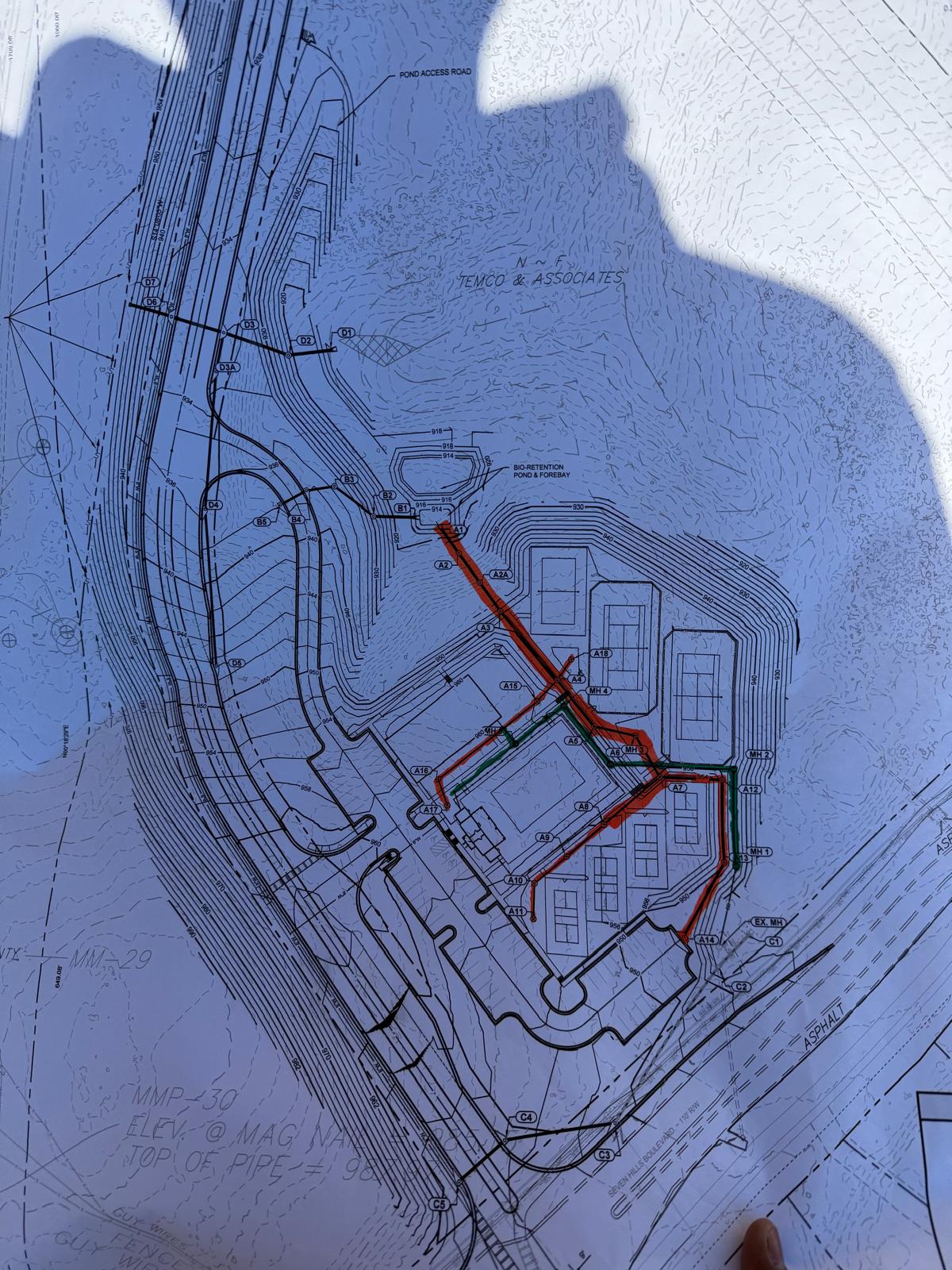

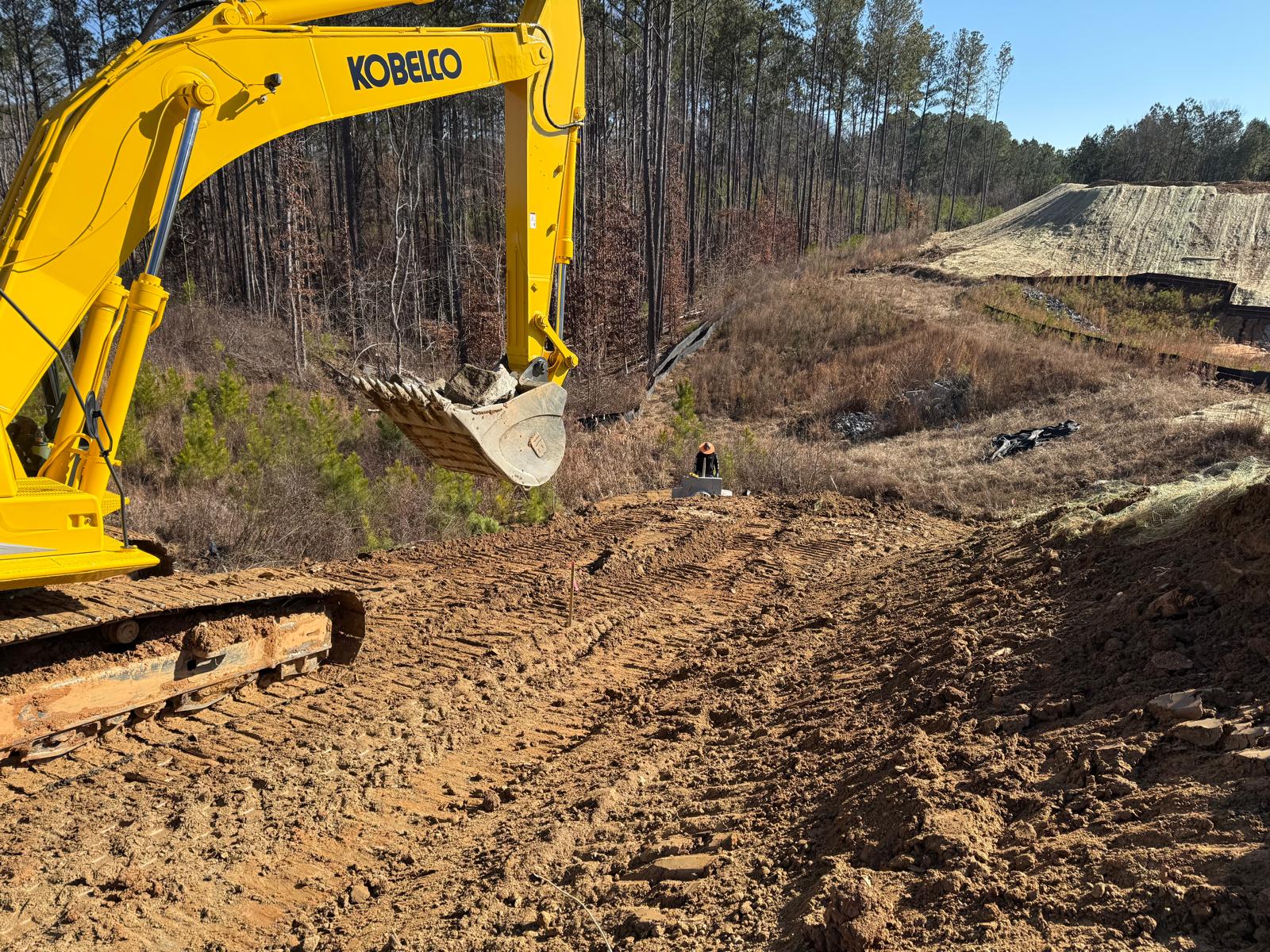

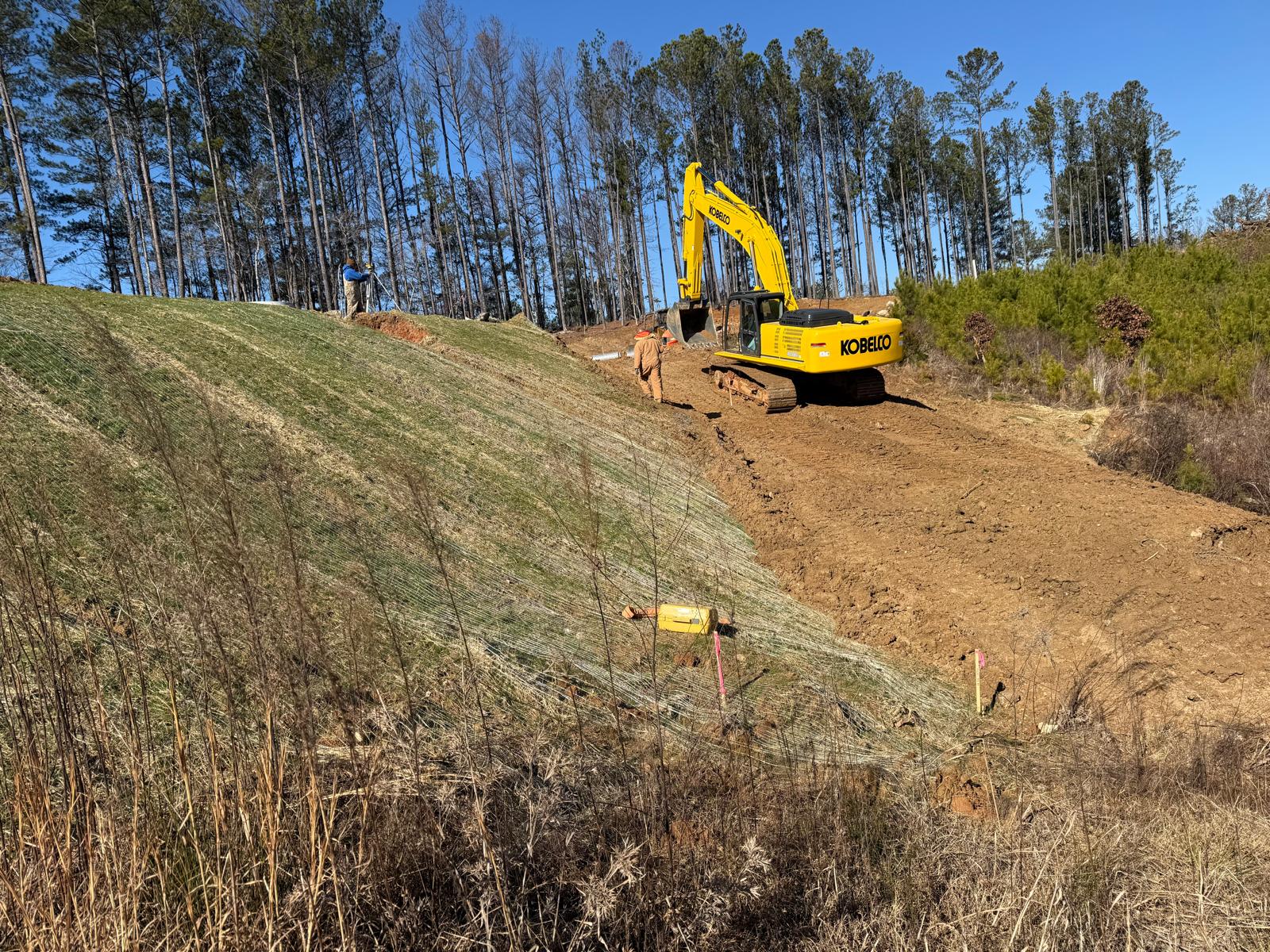

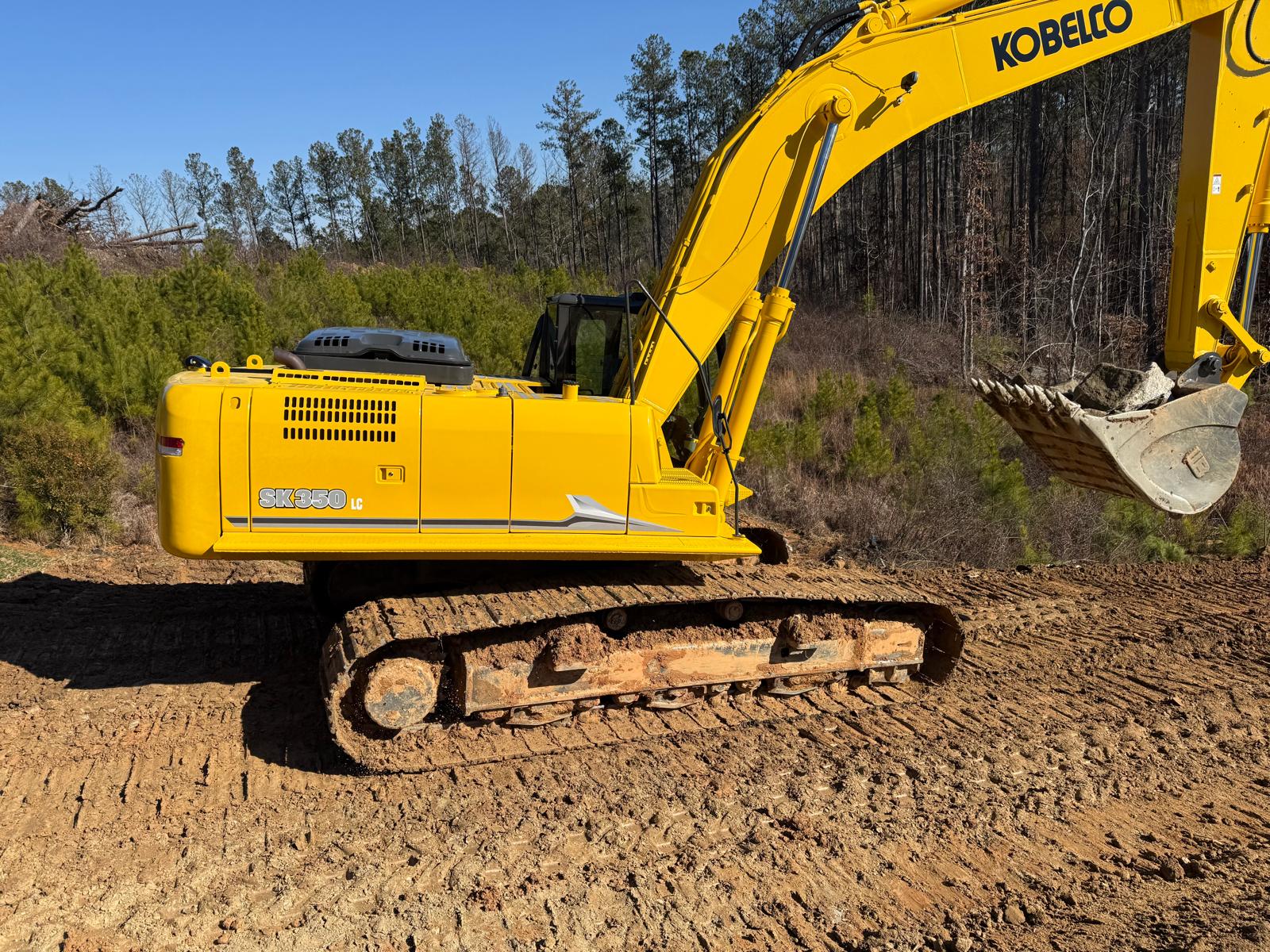

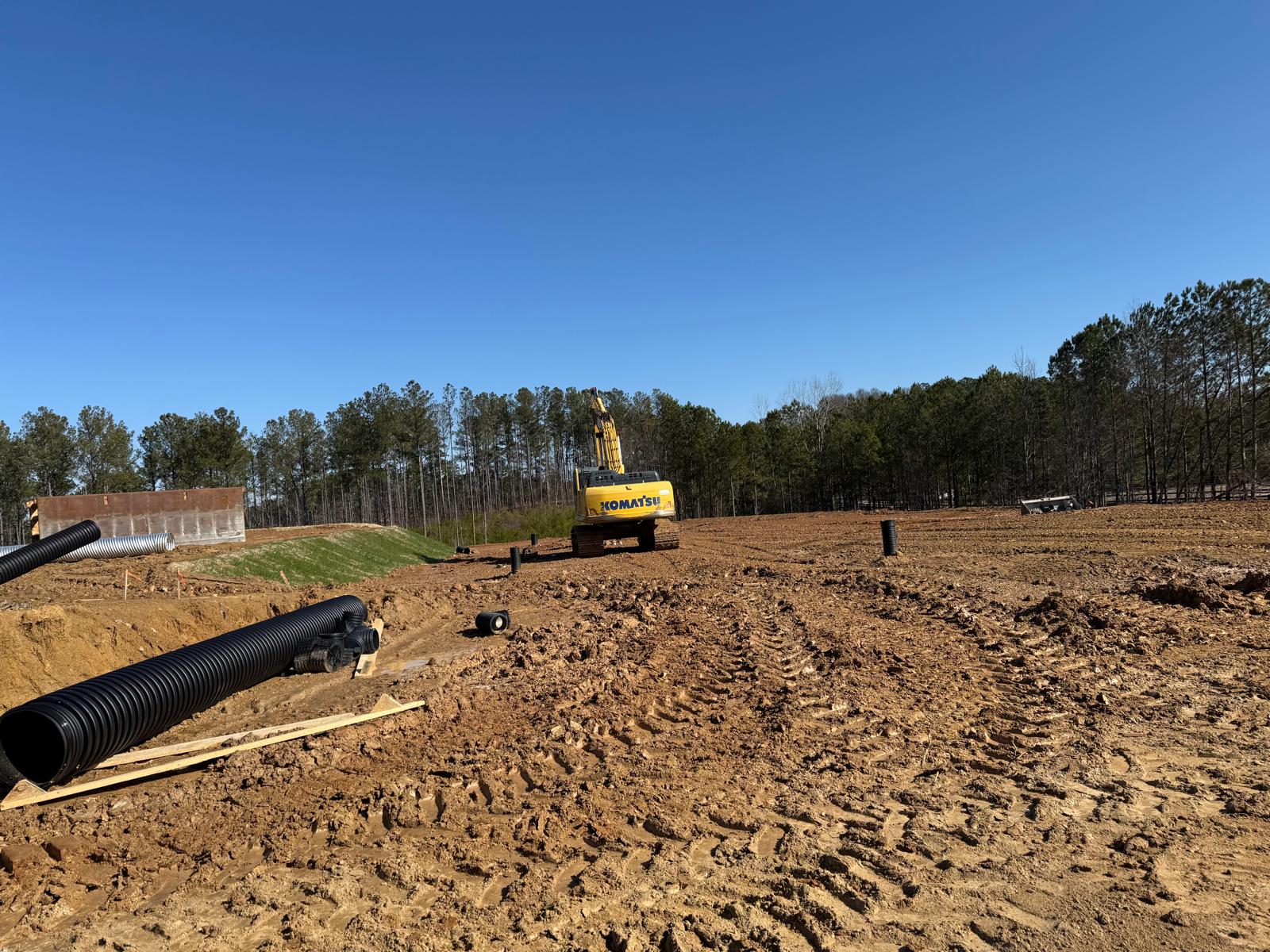

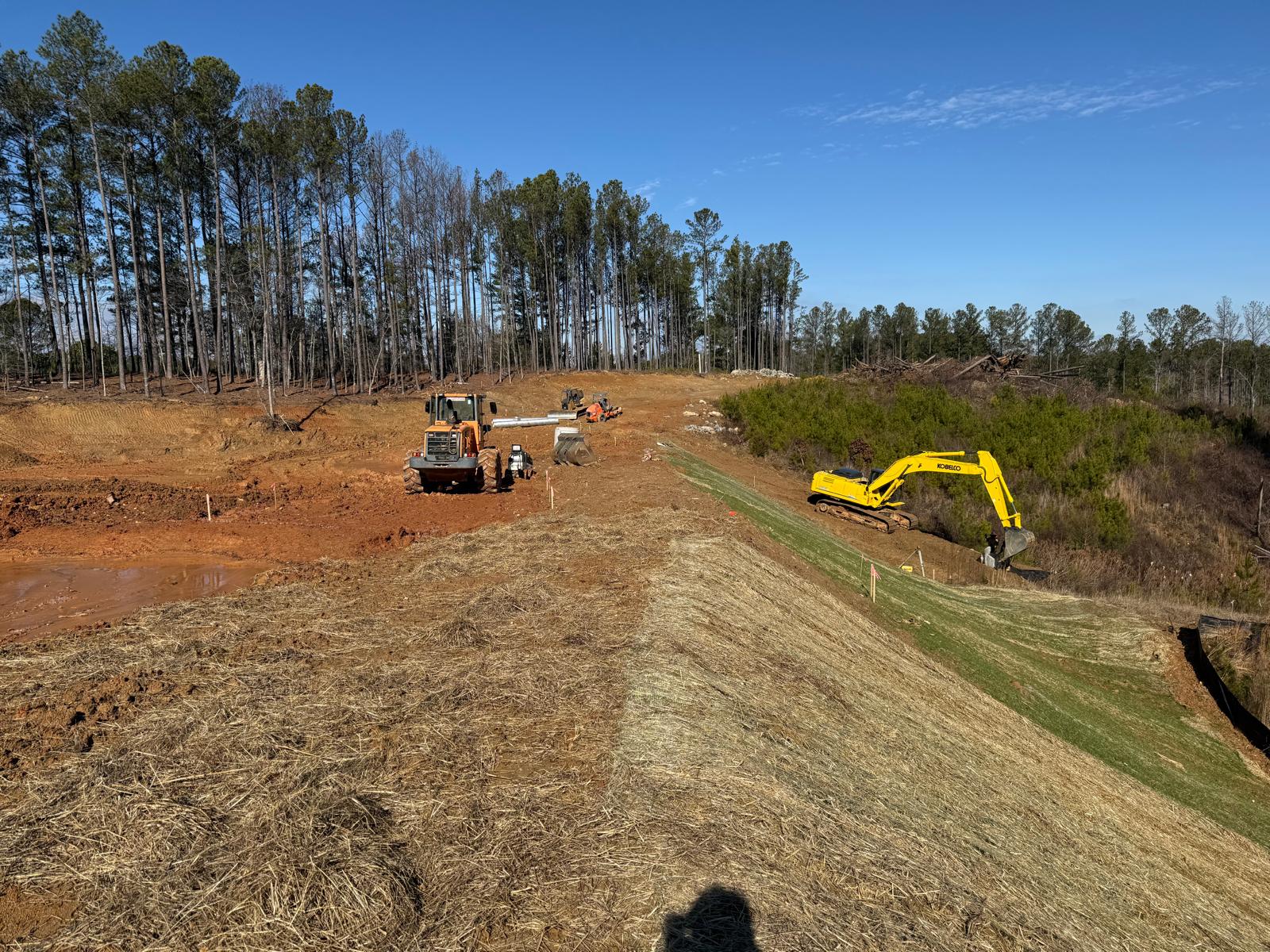

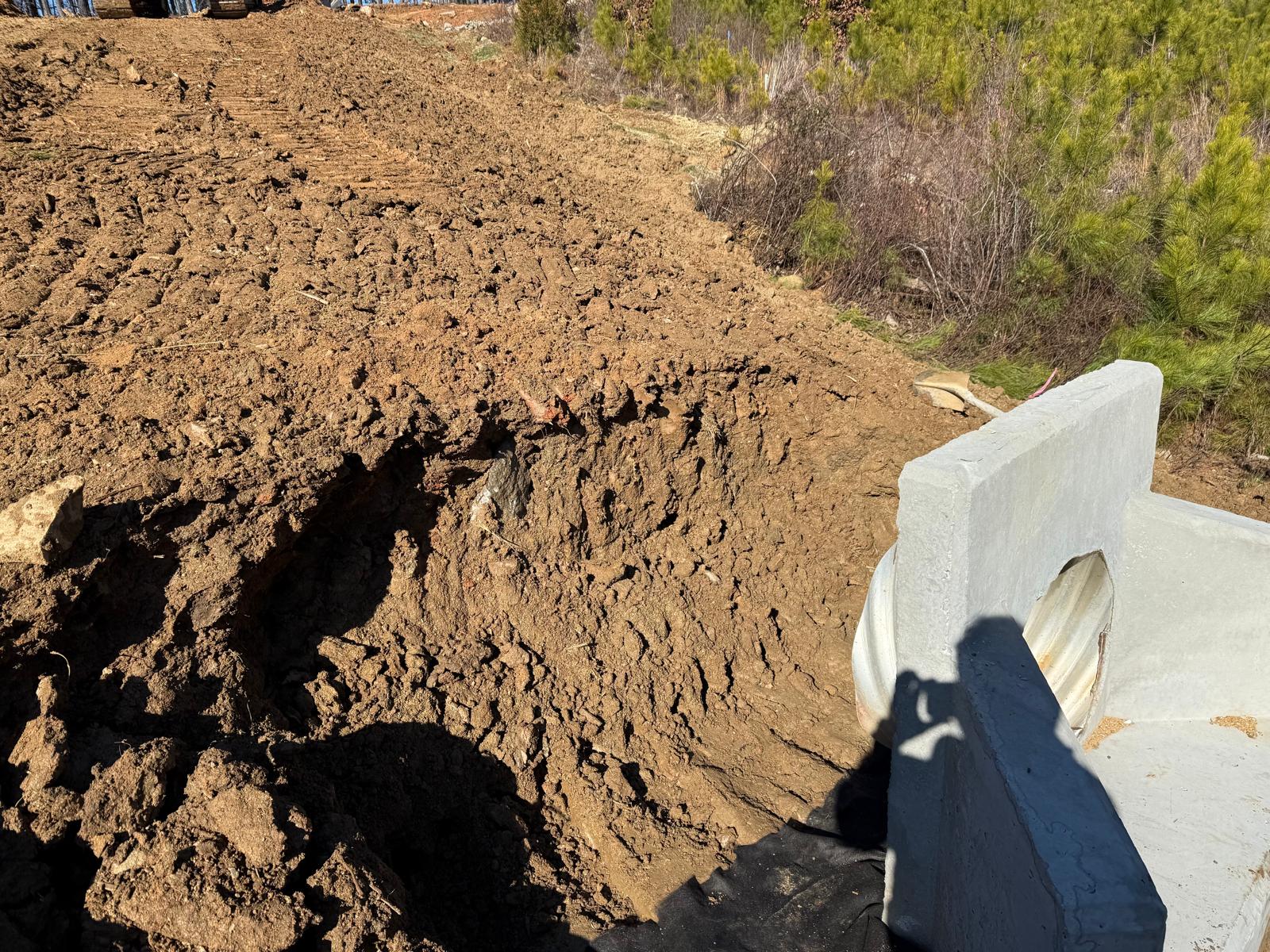

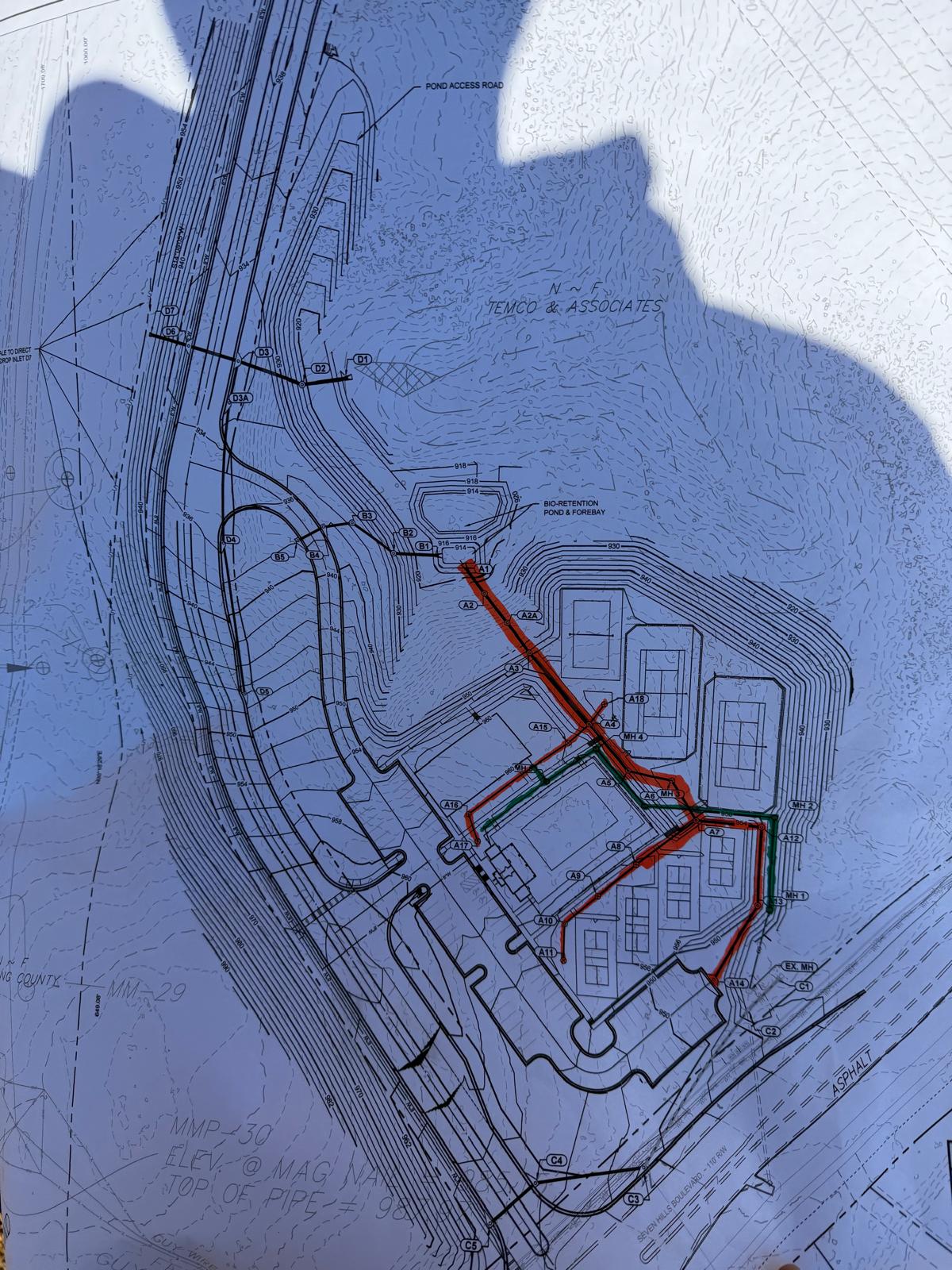

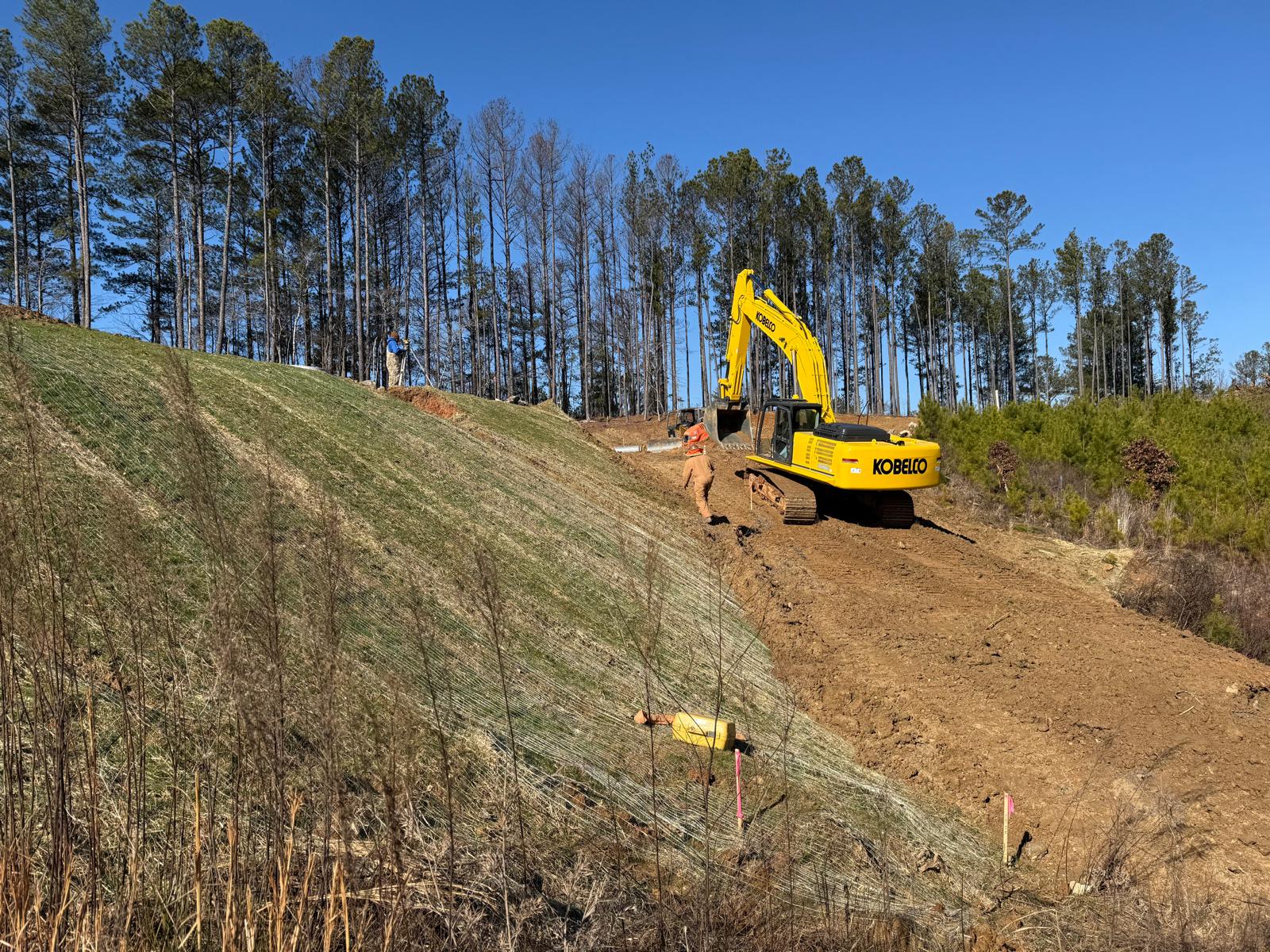

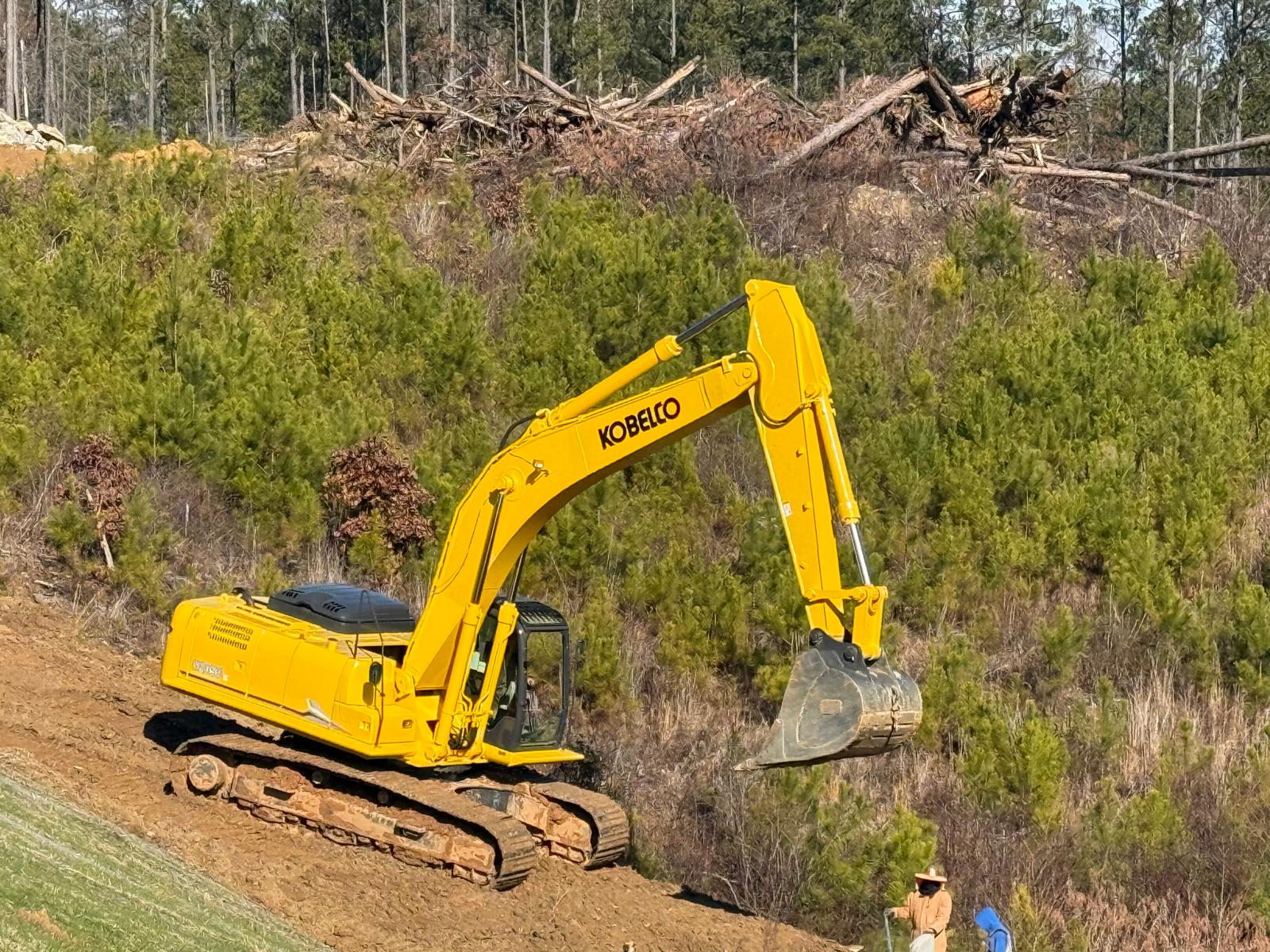

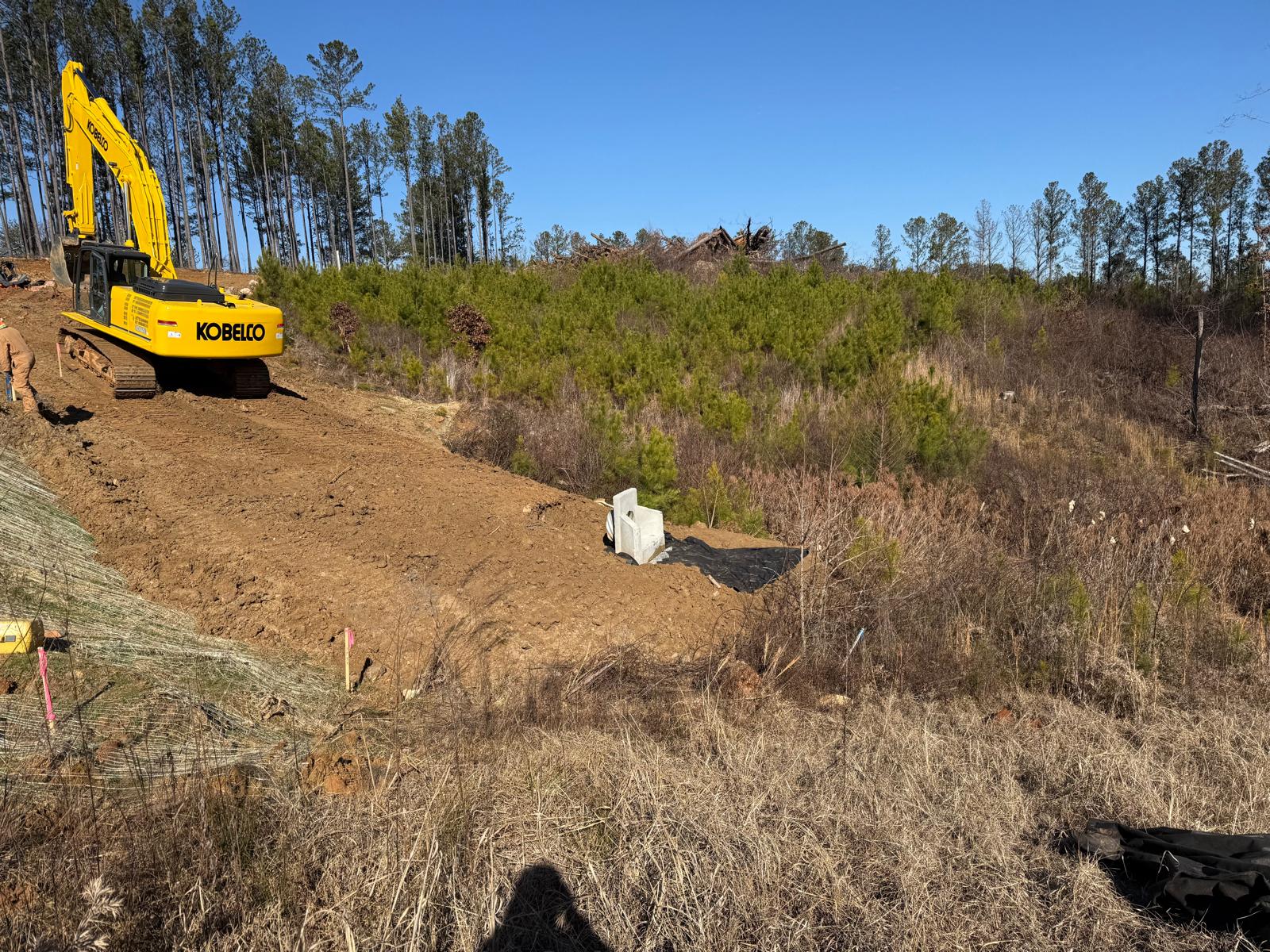

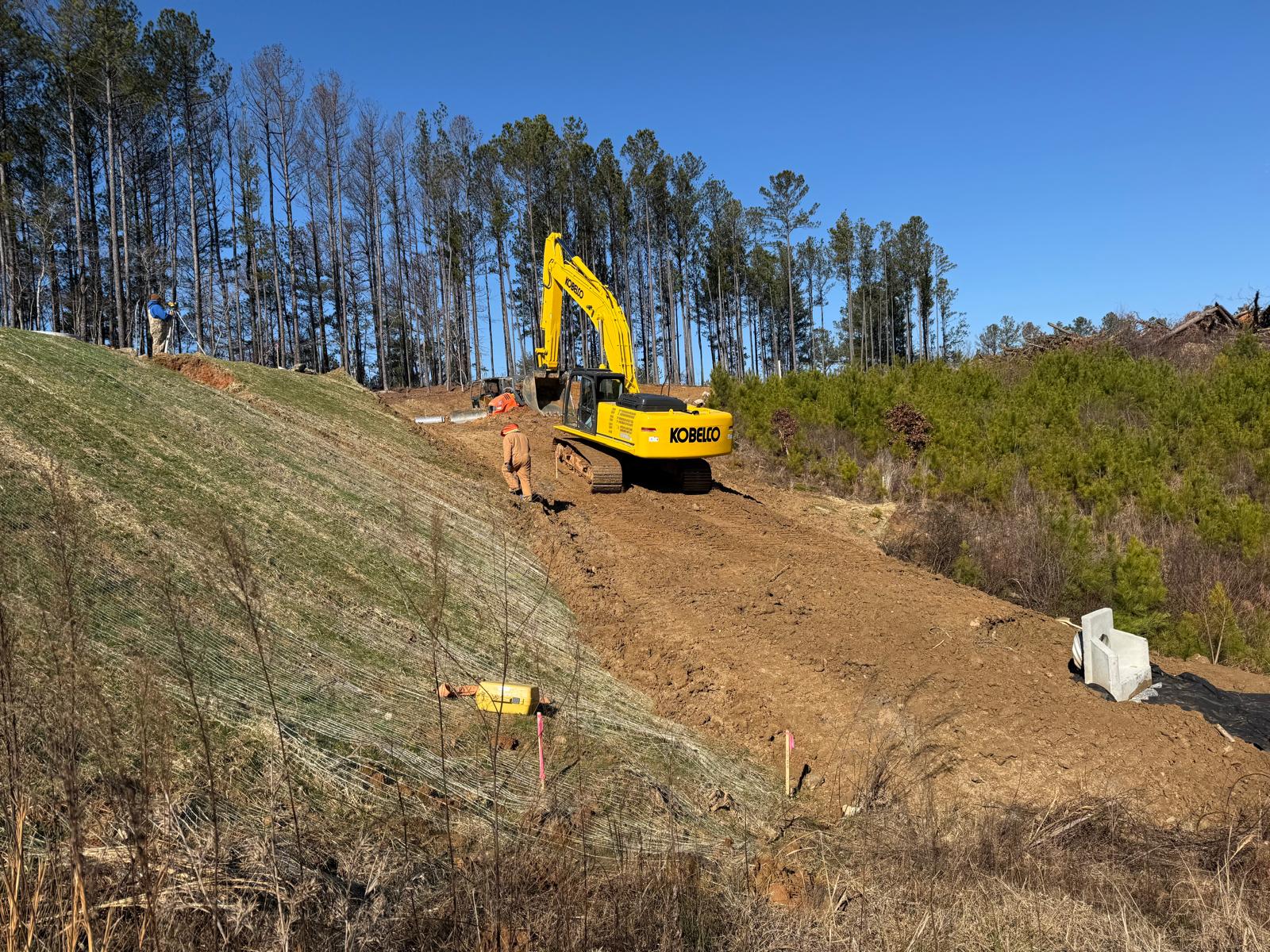

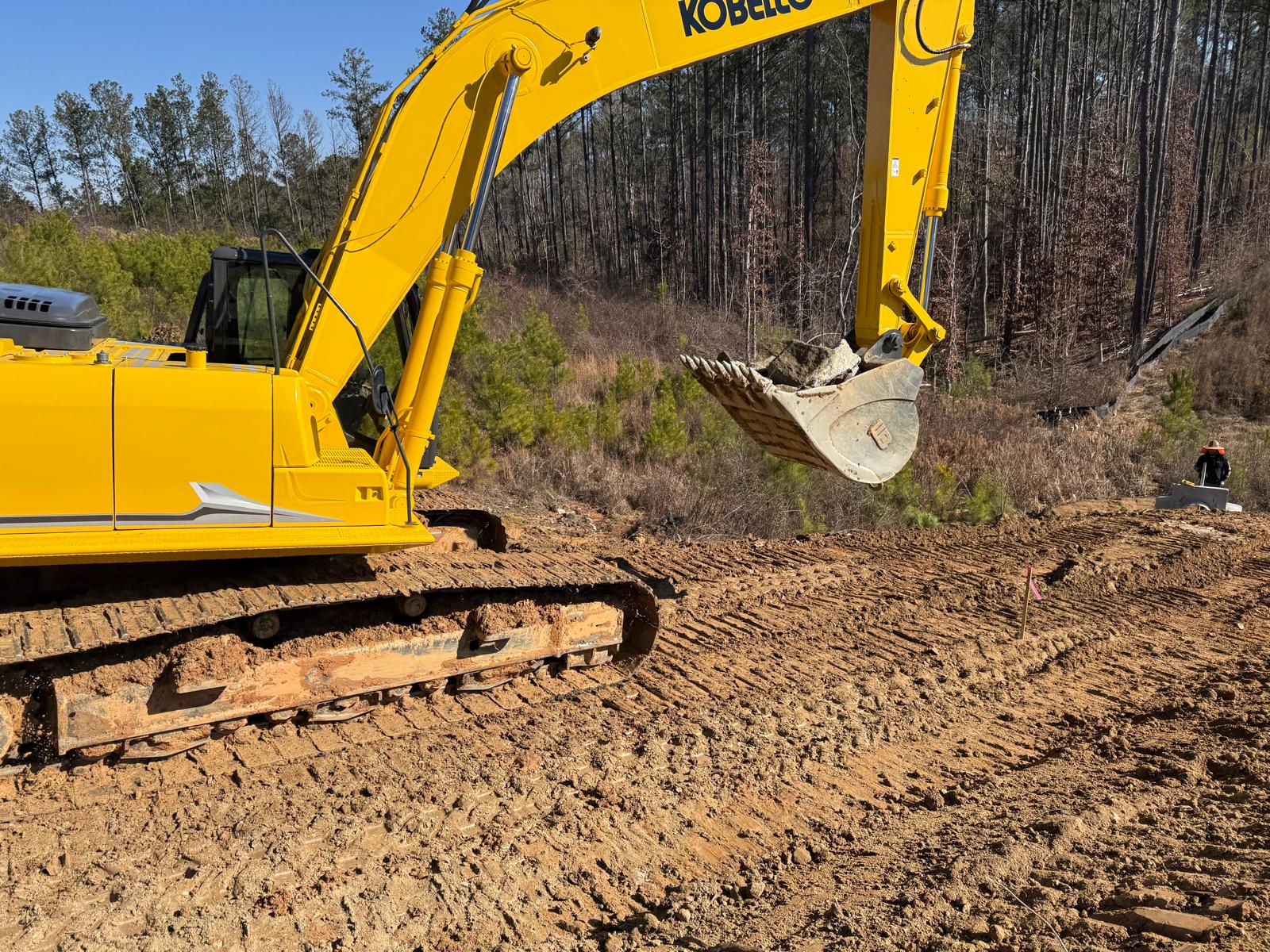

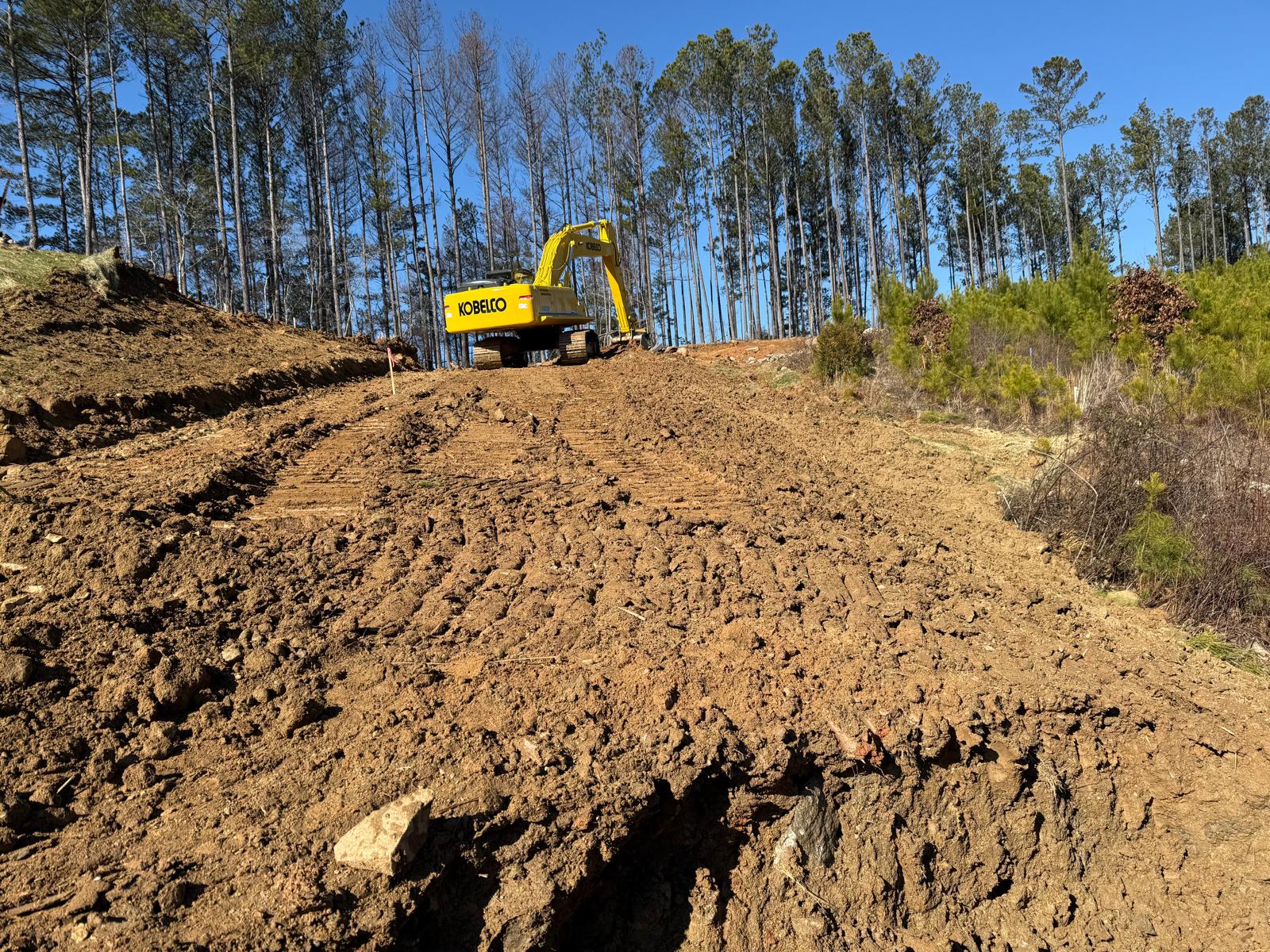

Savannah Pipeline Company has initiated the installation of stormwater lines located between the clubhouse and tennis court area. Excavation work was being carried out using the Kobelco SK350LC excavator. Backfilling was started with compaction being executed with a Hamm Sheep Toe compactor and a remote-controlled compactor, while smaller, confined spaces are compacted using a jackhammer to achieve the density and stability. For the day’s progress, the installation of manholes D1, D2 has been successfully completed.

• Compaction testing was performed using a Troxler nuclear density gauge, along with general probing using a 3/8″ diameter probe rod.
• Density test results indicate that compacted materials did meet the project requirement of 95% of the maximum dry density obtained by a Standard Proctor ASTM 698.

We appreciate the opportunity to be of service to you on this project. If you have any questions regarding this report, please feel free to contact us. We will be more than happy to discuss it with you
