Observations/Finding

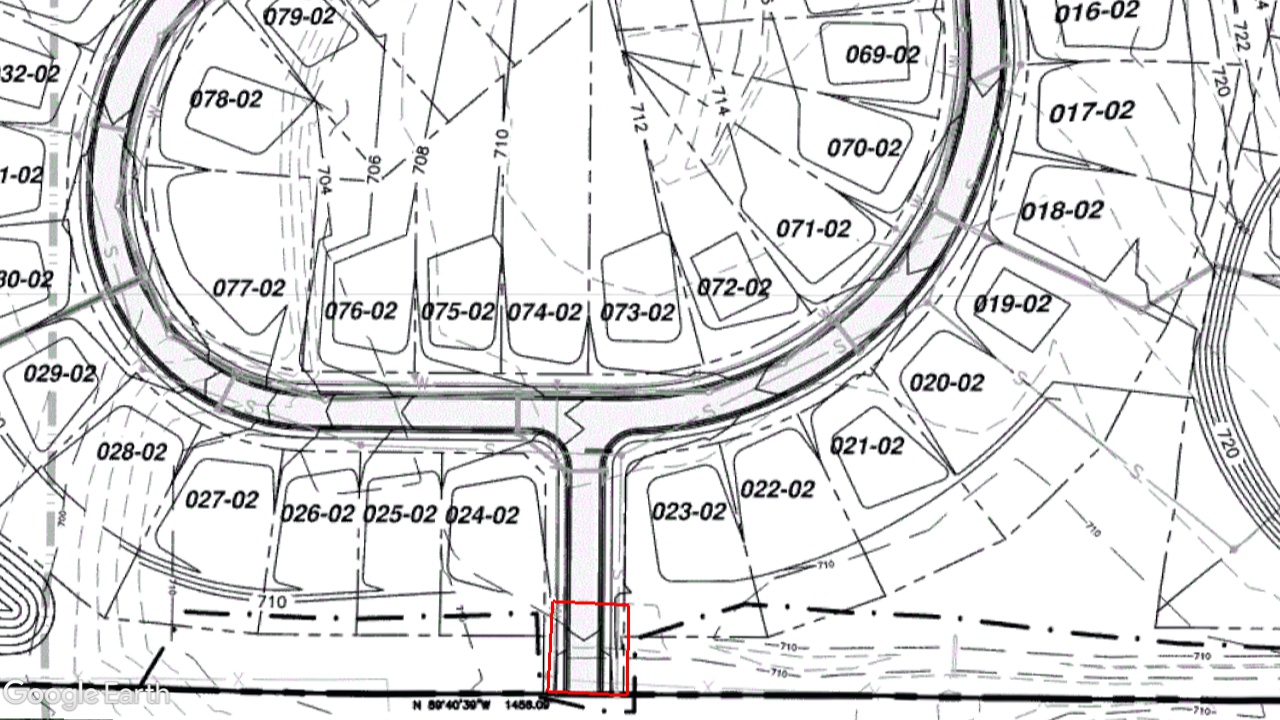

The undersigned ASEC representative was on-site on September 13, 2023, to evaluate soil conditions in the site’s southern portion, specifically where the road is planned to be constructed and to perform compaction testing on Lots #1 and #2.

Soil Description for Area of Road Construction

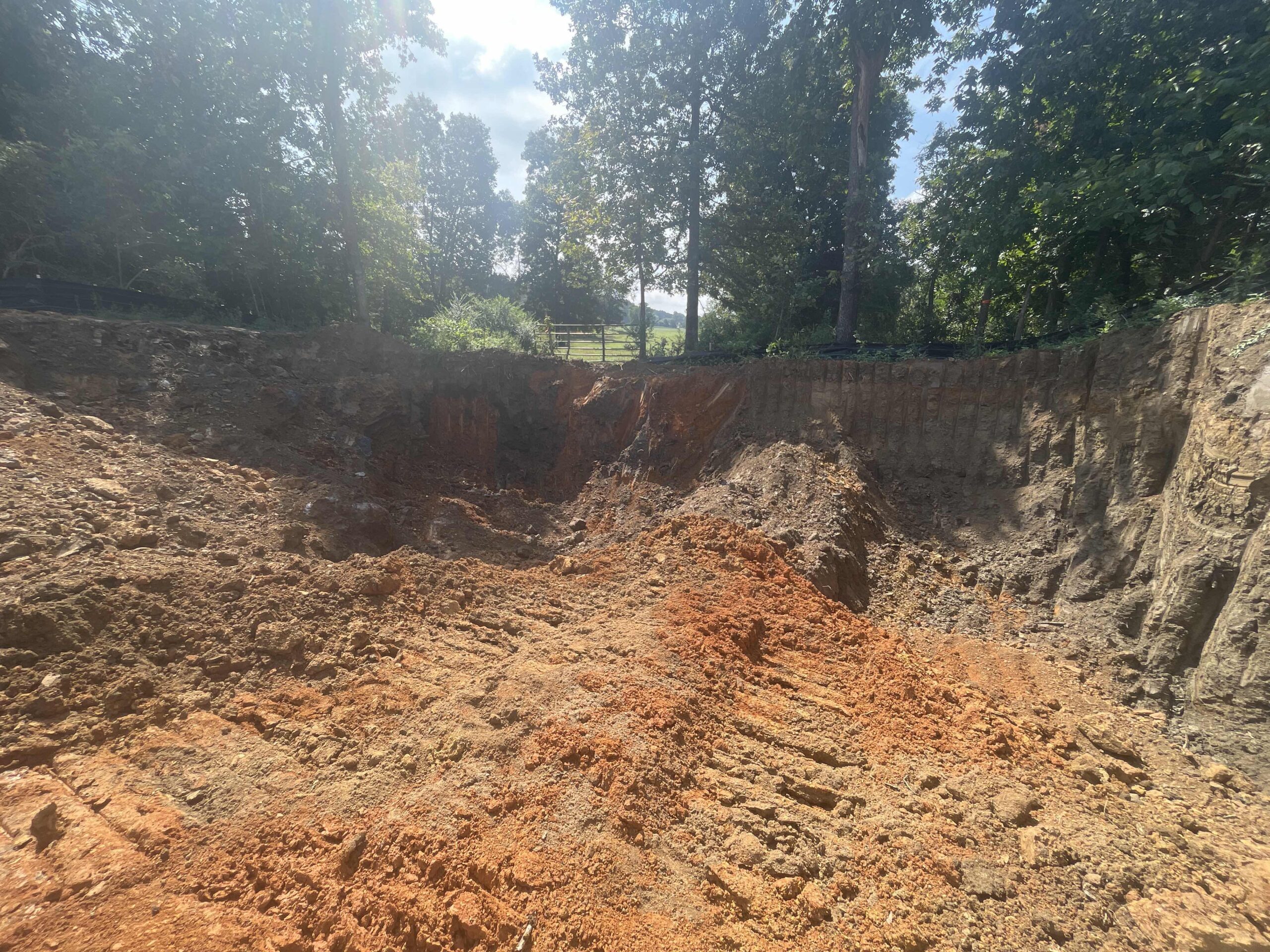

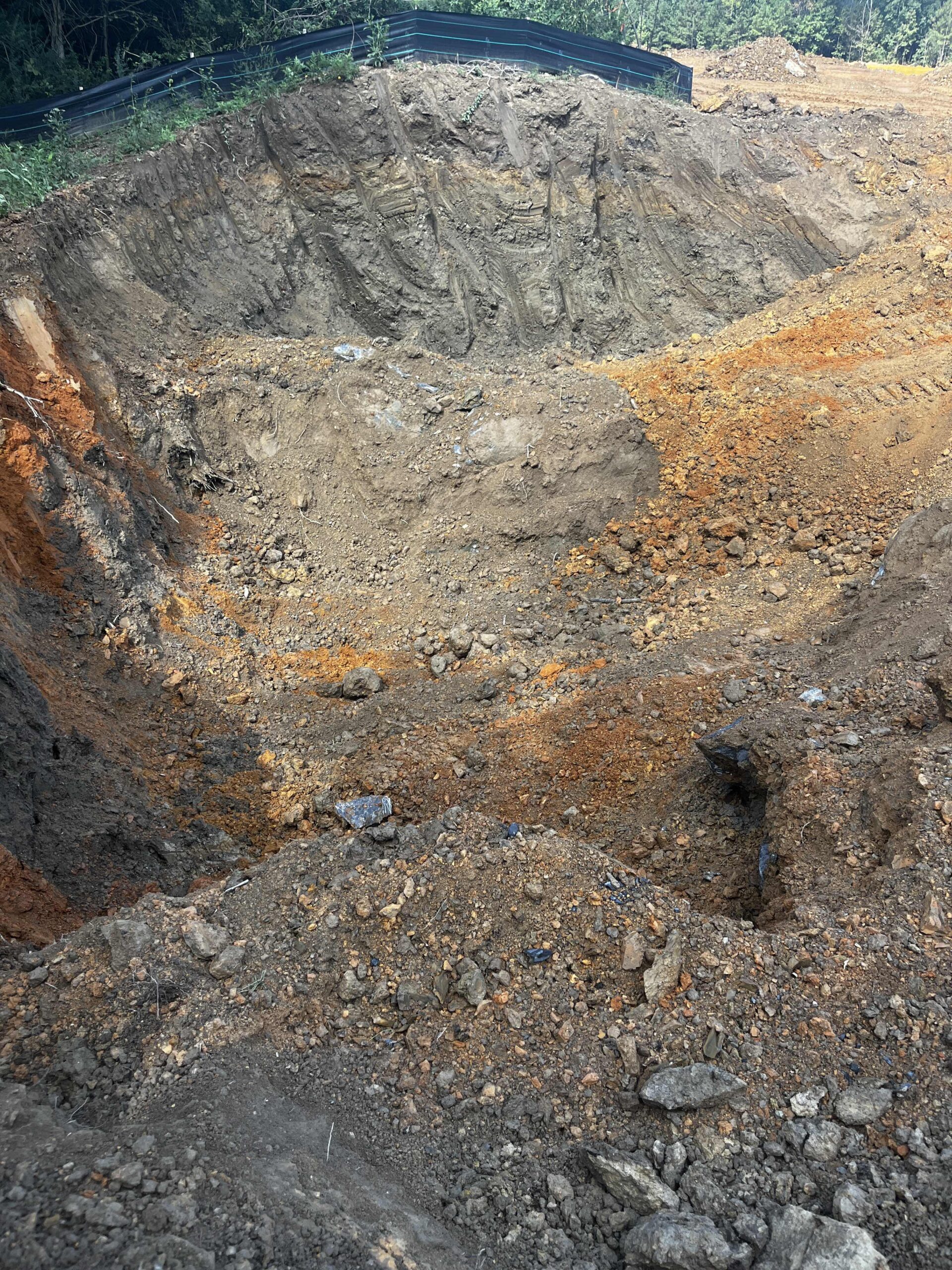

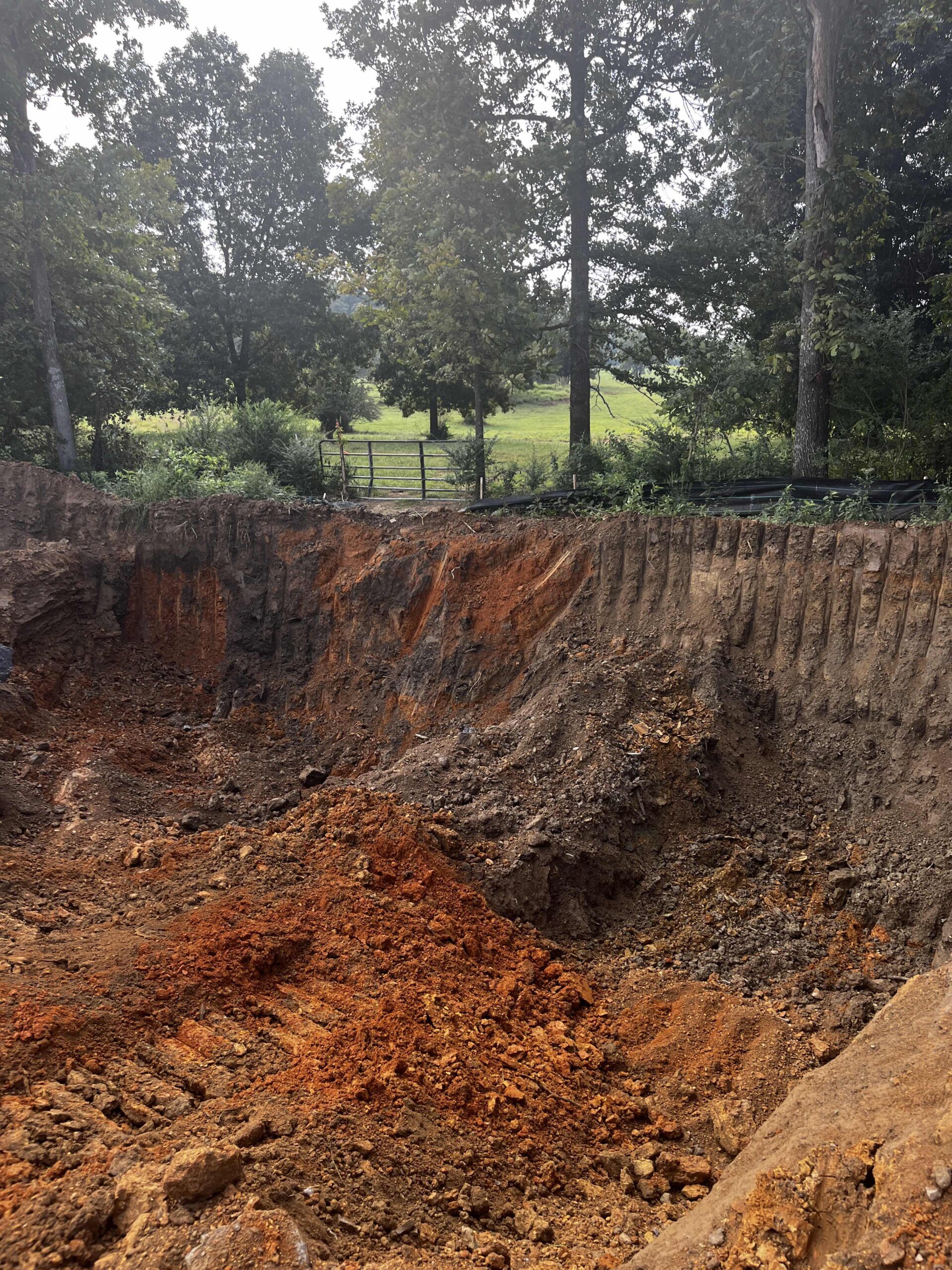

The remediated soil area designated for road construction was measured to be 25 feet by 40 feet to a depth of 10 feet.

Volumetric Analysis for Area of Road Construction

• $25\text{ft}\times 40\text{ft}\times 10\text{ft}=10,000\; cubic\; feet$

Engineering Recommendations for Area of Road Construction

It was recommended that the area be backfilled in six-inch lifts and compacted using the 815 compactor.

Compaction Test Data for Lots 1 and 2

Test Location and Elevation

• Elevation: 725 feet
• Depth below grade: 1.5 feet

Soil Description

• Light Tan Sandy CLAY

Laboratory Data (Moisture-Density Relationship)

• Maximum Dry Density: 97.0 pcf
• Optimum Moisture: 19.1%

In-Field Data

Test 1

• Moisture: 20%
• Dry Density: 96.6 pcf
• Wet Density: 110.2 pcf
• Degree of Compaction: 99.6%

Test 2

• Moisture: 21.3%
• Dry Density: 93 pcf
• Wet Density: 111 pcf
• Degree of Compaction: 95.9%
