Observations/Finding

At the request of the client’s representative, our AS ENGINEERING AND CONSULTING, LLC (ASEC) representative visited the job site to observe the contractor’s work activities from a quality standpoint to assure compliance with project drawings/specifications, applicable codes, and materials submittals and conducted QC testing per the project drawings and specifications.  The following observations were made on site this shift:

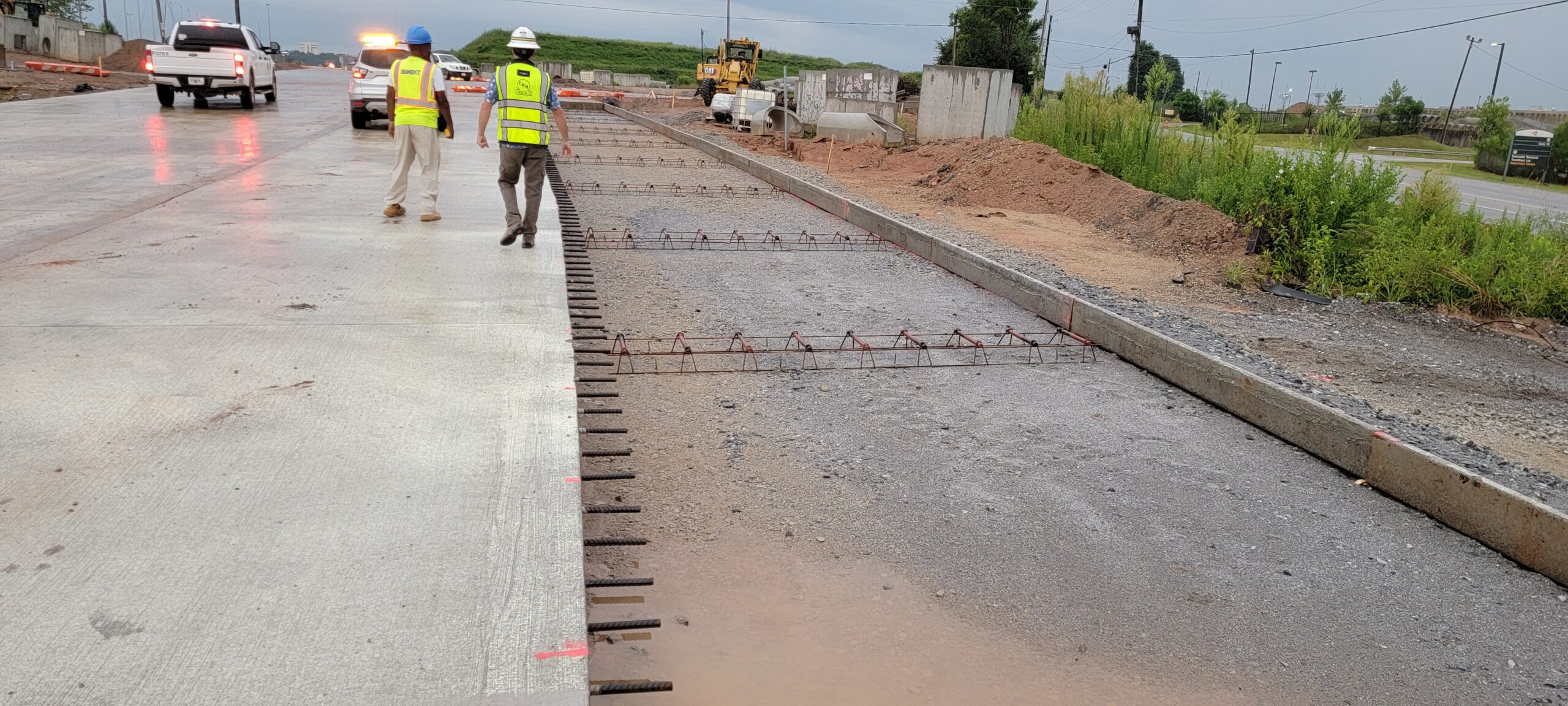

• A pre-pour observation was performed in the Cargo expansion line 25, portions of the project this day.  The contractor completed rebar and dowel basket placement for these lanes.
• The writer visually inspected the installation and setup of these lanes and advised the contractor representatives of any minor corrections that were required.
• Contractor cleaned loose rock and debris and puddles of water from the base.
• Baskets were found to be level and straight and secured.
• Dowel bars have epoxy. Embedment depth into the concrete was found to be 15 inches.
• Our representative along with Kenny of 2MNext QA and the ATLNext representative Mark and CWM rep Brandon  signed the pre-pour card.
